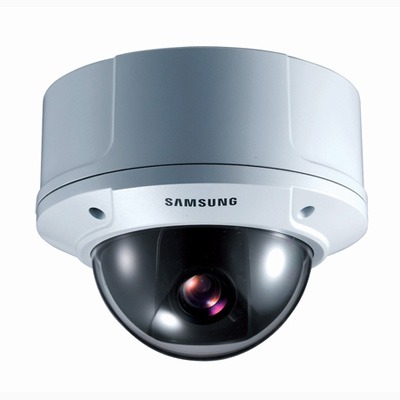

Hanwha Techwin America Techwin SCC-B5397N high resolution WDR vandal resistant dome camera with 600 TVL

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SCC-B5397N
  • Chip Inch Size: 1/3
  • Colour Type: Colour / Monochrome
Read more
Additional info:

Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SCC-B5397N
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 600
Sensitivity lux 0.0008
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC / 24 V AC
Focal length 2.5 ~ 6
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/60 ~1/100,000
S/ N (Signal/ Noise) Ratio dB 52
Synchronisation Internal, Line-lock
Signal Mode NTSC
Physical Specifications Dimensions mm: 150 x 121
Weight g: 1,000
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 0 ~ 90
Protection: IP66
