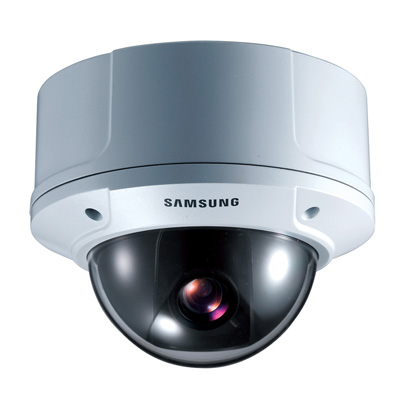

Hanwha Techwin America SCC-B5396P anti-vandal dome camera

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SCC-B5396P
  • Chip Inch Size: 1/3
  • Colour Type: Colour
Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SCC-B5396P
Chip Inch Size 1/3
Colour Type Colour
Resolution TVL 600
Sensitivity lux 0.0008
Dome Type Variable Focus
Digital (DSP) Yes
Electrical Specifications Voltage: 24 V AC
Focal length 2.5 ~ 6
Back Light Compensation Yes
Electronic Shutter range 1/50 ~ 1/10,000
S/ N (Signal/ Noise) Ratio dB 52
Video Output 1 Vp-p, 75 Ohms
Zoom Ratio x16
Physical Specifications Dimensions mm: 150 x 121
Weight g: 1,000
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 0 ~ 90
