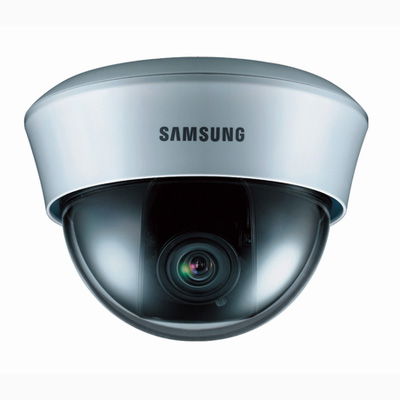

Hanwha Techwin America Techwin SCC-B5369N high resolution day/night WDR dome camera with 600 TVL
Technical Specification
| Make | Hanwha Vision |
|---|---|
| Manufacturer | Hanwha Vision Europe (formerly Hanwha Techwin Europe) |
| Previously known as | Samsung |
| Category | CCTV>Dome cameras |
| Model code | SCC-B5369N |
| Chip Inch Size | 1/3 inch |
| Colour Type | Colour |
| Resolution TVL | 600 |
| Dome Type | Variable Focus |
| Sensitivity lux | 0.0008 lux |
| Digital (DSP) | Yes |
| Electrical Specifications |
Voltage: 12 V DC, 24 V AC Power Consumption: 2.5 W |
| Focal length | 2.8 ~ 11 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/60 ~1/100,000 |
| S/ N (Signal/ Noise) Ratio dB | 52 |
| Synchronisation | Internal, Line-lock |
| Signal Mode | NTSC |
| Zoom Ratio | 12x optical, 10x digital |
| Physical Specifications |
Dimensions mm: 102 (Dia) x 78 Weight g: 330 |
| Environmental Specifications |
Operating Temp oC: -10 ~ +50 Operating Humidity %: 0 ~ 90 |
| Additional info |
Hanwha Techwin SCC-B5369N is a high resolution day/night WDR dome camera with 600 TVL. |
