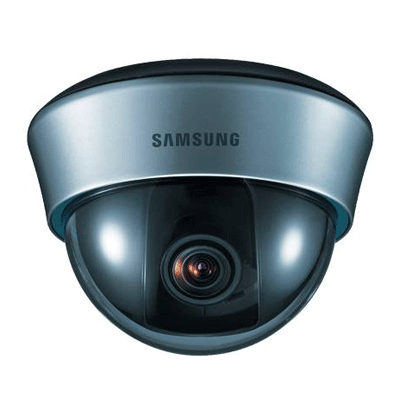

Hanwha Techwin America SCC-B5355P dome camera with horizontal and vertical mirroring function

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SCC-B5355P
  • Chip Inch Size: 1/3
  • Colour Type: Colour / Monochrome
Read more
Additional info:

Hanwha Techwin SCC-B5355P dome camera with horizontal and vertical mirroring function.

Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SCC-B5355P
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 540
Sensitivity lux 0.00009
Dome Type Variable Focus
Electrical Specifications Voltage: 12 V DC / 24 V AC
Power Consumption: 1.7 W
Focal length 2.9 ~ 10
Back Light Compensation Yes
S/ N (Signal/ Noise) Ratio dB 50
Signal Mode PAL / NTSC
Video Output 1 Vp-p, 75 Ohms
Physical Specifications Dimensions mm: 128 x 91
Weight g: 327
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 0 ~ 90
Additional info Hanwha Techwin SCC-B5355P dome camera with horizontal and vertical mirroring function.
