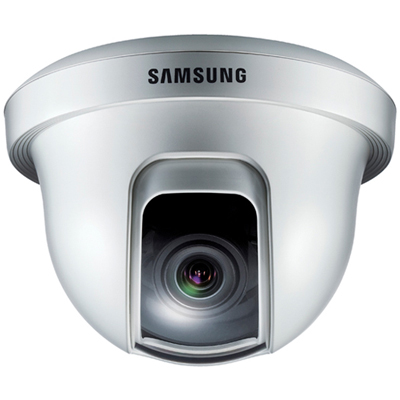

Hanwha Techwin America SCC-B5344P day / night varifocal dome camera

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SCC-B5344P
  • Chip Inch Size: 1/3
  • Colour Type: Colour
Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SCC-B5344P
Chip Inch Size 1/3
Colour Type Colour
Resolution TVL 570
Sensitivity lux 0.0009
Dome Type Variable Focus
Electrical Specifications Voltage: 24 V AC
Power Consumption: 1.7 W
Focal length 2.9 ~ 10
Rotation Angleso 355 pan, -0 ~ 90 tilt
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB 50
Video Output 1 Vp-p, 75 Ohms
Physical Specifications Dimensions mm: 128 (Dia) x 91
Weight g: 293
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 0 ~ 90
