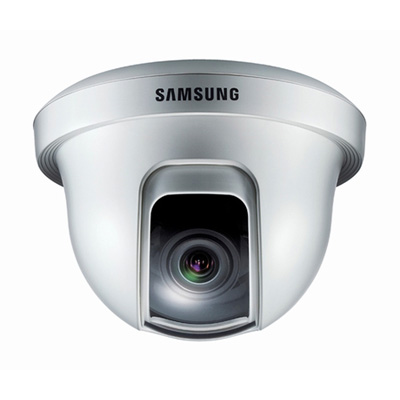

Hanwha Techwin America Techwin SCC-B5343N day/night varifocal dome camera with 540 TVL

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SCC-B5343N
  • Chip Inch Size: 1/3
  • Colour Type: Colour / Monochrome
Read more
Additional info:

Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SCC-B5343N
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 570
Sensitivity lux 0.00009
Dome Type Variable Focus
Indoor/Outdoor Indoor/Outdoor
Electrical Specifications Voltage: 12 V DC / 24 V AC
Power Consumption: 1.7 W
Focal length 3.8 ~ 38
Rotation Angleso 355 pan, 0 ~ 90 tilt
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB 50
Synchronisation Internal, Line-lock
Signal Mode NTSC
Video Output 1 Vp-p, CVBS, 75 Ohms
Zoom Ratio x10
Network Properties Interface: RS-485 or RS-232C
Physical Specifications Dimensions mm: 128 (Dia) x 91
Weight g: 293
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 0 ~ 90
Protection: IP66
