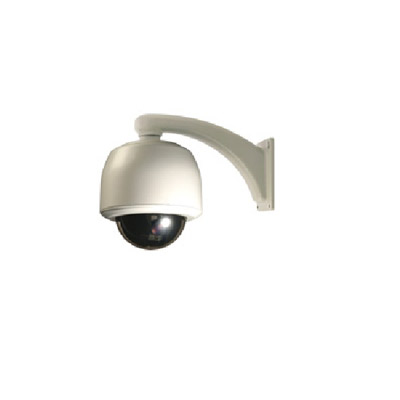

FLIR Systems DVT-9601-D/N-Pd IP Dome camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

FLIR Systems DVT-9601-D/N-Pd IP Dome camera

Features:

Make: FLIR Systems
Previously known as: DVTEL
Model code: DVT-9601-D/N-Pd
Series: SecureLink 9600 Series
Chip Inch Size: 1/4 inch

Additional info:

The SecureLink 9600 and 9700 Series is a component of the Latitude NVMS. This series of IP based video and audio dome camera systems comes with full set of programmable features including day/night camera options with high infrared sensitivity for no-visible light applications. This series dome systems utilize IGMP multicast technology, which enables a single stream to be transmitted to multiple viewers on the network simultaneously.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	FLIR Systems
Manufacturer	FLIR Systems
Previously known as	DVTEL
Category	CCTV>IP Dome cameras
Model code	DVT-9601-D/N-Pd
Chip Inch Size	1/4 inch
Colour Type	Colour / Monochrome
Resolution TVL	704 x 576
Sensitivity lux	0.01
Dome Type	Continuous Rotation
Pan Speed ^o/ sec	0.1 ~ 100 ^o/ sec pan speed
Indoor/Outdoor	Indoor
Tilt Speed ^o/ sec	0.1 ~ 100 ^o/ sec tilt speed
Mount Type	Pendant mount
Focal length	4 ~ 88
Rotation Angles^o	360 Pan / 0 ~ 90 Tilt angles
Presets	64
Compression	MPEG-4
Zoom Ratio	x23
Network Properties	Interface: 10/100 Base-T Ethernet Network Protocols: TCP/IP, UDP, RTCP, RTP, HTTP, IGMP, ICMP, ARP Control: PTZ
Electrical Specifications	Power Consumption: 21 W
Environmental Specifications	Operating Temp ^oC: 0 ~ +50 Protection: IP66
Additional info	The SecureLink 9600 and 9700 Series is a component of the Latitude NVMS. This series of IP based video and audio dome camera systems comes with full set of programmable features including day/night camera options with high infrared sensitivity for no-visible light applications. This series dome systems utilize IGMP multicast technology, which enables a single stream to be transmitted to multiple viewers on the network simultaneously.
