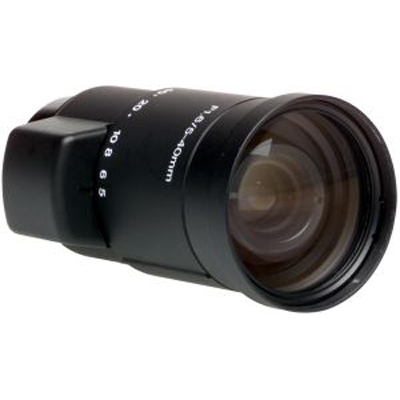

eneo F05Z08NDDC CCTV camera lens

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: eneo
Model code: F05Z08NDDC
Lens Format inches: 1/3 inch
Focal Length mm: 5 ~ 40 mm focal length
Iris Type: Auto Iris

Additional info:

Suitable for 1/2" and 1/3" colour and monochrome cameras. High standard of optical and mechanical quality. Adjustable slip-ring mount for cable positioning.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	eneo
Manufacturer	eneo
Category	CCTV>CCTV camera lenses
Model code	F05Z08NDDC
Lens Format inches	1/3 inch
Focal Length mm	5 ~ 40 mm focal length
Iris Type	Auto Iris
Lens Mount	CS mount
F-Stop	1.6 F-stop
Direct Drive	Yes
Angle (Field) of View ^o	53.6 ~ 6.5
Physical Specifications	Dimensions mm: 72.5 x 42 x 27 Weight g: 150
Varifocal	Yes
Additional info	Suitable for 1/2" and 1/3" colour and monochrome cameras. High standard of optical and mechanical quality. Adjustable slip-ring mount for cable positioning.
