eneo CCTV Cameras

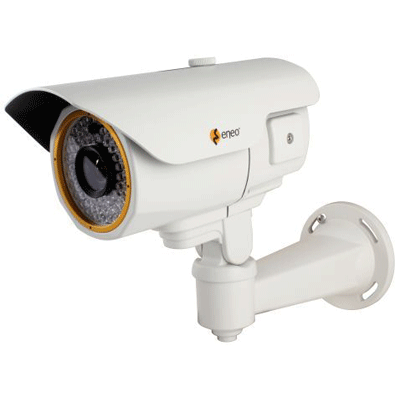

If you wish, you can go swimming together with the plug & play cameras in the new bullet housing. Or monitor the streets of New Delhi during the Indian monsoon. Because the very sturdy housing is protected compliant with IP68 and it can therefore also be taken along when swimming under water. But when you are not planning to go diving at the moment, then the VKC-1378, VKC-1379 and VKC-1382 by eneo are the right choice for reliable outdoor use at temperatures from -20°C to +50°C. Because everything has been prepared to make installation quick and smooth: camera modules with retractable infrared cut filter for day and night use, integrated varifocal lenses, wall bracket with concealed cabling for wall mounting, sunshield. This means for you: at the installation site unpack, bolt on, hook up the cables. Focus and zoom can then be set externally without having to unscrew the housing.For the start: four different modelsWhat are the differences among the four currently available models? The differences between the VKC-1378/IR-650 and the VKC-1378/IR-316 are limited to the focal length: whilst the focal length of the VKC-1378/IR-650 lies at 6mm to 50mm, the VKC-1378/IR-316 has a focal length of 3.5mm to 16mm. Both cameras have a horizontal resolution of 560 TV lines, light sensitivity of 0.25 lux at F1.2, and their 70 LEDs (850nm) can illuminate as far as 80 metres. The VKC-1382/IR3516 has a horizontal resolution of 600 TV lines, light sensitivity of 0.14 lux at F1.2, and their 70 LEDs (850nm) can illuminate as far as 80 metres. Things are different for the VKC-1379/IR-316: the VKC-1379B/IR-316 (unlike the other models) is a Pixim camera that ensures a wide dynamic range (WDR) of 120dB with its patented DPS technology. Its horizontal resolution lies at 570 TV lines, light sensitivity at 1.4 lux, and its 70 LEDs (850nm) have an illumination range up to 80 metres. On all models the illumination is switched on and off automatically in response to the ambient lighting. The suitable model for you is not here? We will continuously expand our product range of cameras in the bullet housing, corresponding IP versions are also currently in the works.

The eneo VKC-1378/IR316 includes the following features: 1/3" RGB colour DPS sensor (Pixim Seawolf) Removal IR cut filter (ICR)Sensitivity of 0.4Lux at F1.2 (colour) Integral varifocal lens F1.2/3.5-16mm Powerful digital noise reduction (DNR)Wide dynamic range (WDR): 102dB, 120dB max. Privacy masking / Mirror function Low speed shutter control (DSS)80m night observation distance (70 pcs. IR LED§s) Externally adjustable focus & zoomSupply voltage: 12VDC or 24VAC Bullet housing, wall mount, hidden cable routing

1/3 inch, Colour / Monochrome, 570 TVL resolution, Digital (DSP), Auto Iris, Direct Drive, 0.1 @ F1.2 lux, C/CS mount, 12 V DC, High Speed, 3.8 ~ 9.5, 752 x 582, Back Light Compensation, Auto Gain Control, White Balance, 0.45, 46, 4 W, 225, -10 ~ +50, IP40

The eneo VKC-13100/IR2810 is the ideal choice for your night tasks. It always delivers clear and high-contrast pictures - even when you can't see your hand in front of your face and details are hidden in darkness. This is due, on the one hand, to the IR cut filter that retracts automatically in response to ambient lighting. On the other hand, forty 850nm LEDs are installed in the camera. These LEDs generate a maximum illumination range of 50 metres controlled by Dynamic Light Intensity Control (DIC), so you don't need to even think about extra illumination when you install the camera. The camera switches back into day mode when the sun rises in the morning and details again become visible. In day mode the VKC-13100 presents its imagery in exactly the same way usual for the human eye, in colour. By the way: the camera also operates perfectly in backlight, thanks to E-Wide Dynamic Range. Exclusive Model Water and dust cannot harm the sturdy VKC-13100/IR2810. With its protection rating of IP68 it is well prepared for all tasks out in the open. Whether in day-long heavy rain, or the hottest summer days up to 50°C - the new bullet camera always operates at full effectiveness. The compact and elegantly proportioned housing of merely 90x108x190mm deserves special attention as it is amazingly simple to install: the VKC-13100 is fixed in position by only one screw. The flexible mounting arm can be fitted to the wall or ceiling and simultaneously provides concealed cable management. The zoom and focus are adjustable from the outside without having to open the housing. This means you can start off as soon as you have opened the package when you receive your VKC-13100. All you have to do is to screw on the camera and hook up the cables. Plug and play in perfection.

Cameras are becoming more and more intelligent. In addition to a progressive increase in resolution, numerous analysis functions are becoming available to make surveillance far more reliable and also ensure the security personnel's work is much easier. The VKC-1375 Box Camera and VKCD-1375 Fixed Dome from eneo are current examples of this. Reliable sabotage detection combined with a camera cover, defocusing, spray-painting detection and change of viewing direction are highlights. Motion detection has been implemented with different functionalities and configuration options: classic motion detection is applied to the entire scene with automatic upsizing and tracking of the detected movement by PTZ. Now though, the Mine Area function is used to preselect relevant areas, such as a wire, barrier or an area where unauthorised entry is prohibited. But the eneo technology goes even further: their range of functions include face image recognition and alerting when an object is moved out of a predefined area, plus cross object counting and entrance counting. With Cross Object Counting, two vertical lines defined in the picture are used for counting objects that move past, such as vehicles driving past a building. With Entrance Counting, the camera counts the number of people who enter or leave an entrance area, such as in a supermarket. The number counted is displayed directly in the camera image for both functions. Furthermore, an alarm output contract is available for triggering further activities for all the above video analysis functions.  Watch video demos showcasing the functions of video analytics in the camera  Video clips on  http://www.eneo-security.com/.You want to experience all analysis options in operation? Then visit this link where you will see video clips that not only explain each functions, they also show the settings you need to make in the setup menu. EHLC functionality and 3D DNR noise suppression All of these analysis functions are clearly only useful when the image quality is outstanding: the VKC-1375 and VKCD-1375 have a horizontal resolution of 650 TV lines and - in addition to advanced WDR, pixel compensation and real day/night functionality - they feature the new EHLC functionality (Excessive High Light Compensation). This function shades very bright areas in the video image, such as car headlights directed at the camera. Also, very dark image areas are brightened, so that the number plate is clearly recognisable despite the darkening effect in this example. Effective noise reduction is achieved through either the 2D function or the very effective 3D-DNR. The very high resolution is due to the use of a new Sony Chip Set with a very high number of active pixels.

1/3 inch, Colour, 540 TVL resolution, Auto Iris, Direct Drive, 0.23 lux, C/CS mount, 100 ~ 240 V AC, Motion Activated, 795 x 596, Back Light Compensation, Auto Gain Control, White Balance, 0.45, 1/50 ~ 1/120,000, 50, Internal, Line-lock, CCIR, PAL, 1.0 Vp-p, 75 Ohms, 4.5 W, 56 x 67.5 x 124, 310, -10 ~ +50

1/3 inch, Colour / Monochrome, 550 TVL resolution, Digital (DSP), Infrared, Auto Iris, Direct Drive, 0.31 lux, 24 V AC / 12 V DC, 3.8 ~ 9.5, Wall, 752 x 582, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/10,000, 46, Internal, CCIR, PAL, 1.0 Vp-p, 75 Ohms, 4.2 W, 55 x 60 x 127, 420, -10 ~ +50, 10 ~ 85

1/3 inch, Colour / Monochrome, 600 TVL resolution, Auto Iris, 0.03 lux, CS mount, 12 V DC, 752 x 582, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/120,000 sec, 50, Internal, CCIR, PAL, 1Vpp, CVBS or VBS, 75 ohms, BNC, 3.6 W, 330, -10 ~ +50

1/3 inch, Colour / Monochrome, 600 TVL resolution, Auto Iris, Direct Drive, 0.05 lux, 12 V DC, 3.8 ~ 9.5, Wall, Ceiling, 752 x 582, Back Light Compensation, Auto Gain Control, White Balance, 0.45, 1/50 ~ 1/120,000, 50 dB, Internal, Zoom, 3.0 W, 490, IP66, Weather Resistant

1/3 inch, Colour, 550 TVL resolution, Infrared, 1.1 lux @ F1.2 lux, 12 V DC, 3.7, Back Light Compensation, Auto Gain Control, White Balance, 0.45, 1/50 ~ 1/110,000, >48, Internal, 2.5 W, 120 x 70 x 120, 190, -10 ~ +50

1/3 inch, Colour, 550 TVL resolution, Digital (DSP), PCB, Auto Iris, Direct Drive, 0.35 lux, 12 V DC, 3.8, 752 x 582, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/100,000, 48, Internal, PAL, 1.0 Vp-p, 75 Ohms, 2.1 W, 38 x 38 x 15.9, 35

1/3 inch, Colour / Monochrome, 540 TVL resolution, Digital (DSP), Auto Iris, Direct Drive, 0.07 @ F1.2 lux, CS mount, 230 V AC, High Speed, 752 x 582, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/100,000, 50, Internal, Line-lock, CCIR/PAL, 1 Vp-p, 75 Ohms, 4.5 W, 450, -10 ~ +50, IP40

1/3 inch, Colour / Monochrome, 600 TVL resolution, 0.03 @ F1.2 lux, CS mount, 100 ~ 240 V AC, 752 x 582, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/100,000, 50, Internal, 1 Vp-p, CVBS or VBS, 75 Ohms, 7 W, 124.7 x 64 x 57.6, 430, -10 ~ +50

1/3 inch, Colour / Monochrome, 550 TVL resolution, Digital (DSP), Infrared, Auto Iris, Direct Drive, 0.22 @ F1.2 lux, CS mount, 12 V DC, High Speed, 3.8 ~ 9.5, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/100,000, 45, Internal, 1 Vp-p, 75 Ohms, 3 W, -10 ~ +50, IP67

eneo is upgrading its W3 Series, the ideal solution for outdoor installations, with the high-resolution Plug & Play camera called the VKC-1368. It adds a white-light version to the brand's range of weatherproof cameras. 17 integrated white light LEDs deliver an illumination range of approximately 10 metres. But the VKC-1368 still operates with a high light sensitivity of 0.2 Lux at F1.2 when the white light is switched off. Its top class image quality in all lighting conditions is due partly to its 1/3" Supper HADII Colour CCD image sensor made by Sony along with the integral varifocal lens. It furthermore offers enhanced sharpness compensation and back light compensation. One outstanding feature is the Dynamic Light Intensity Control (DIC), which automatically adapts the intensity of the white light to the lighting conditions. But mention must also be made of the enhanced sharpness compensation and back light compensation (BLC) as well as the flexible dual supply voltage of 12VDC or 24VAC. The W3 weatherproof housing series classified compliant with protection rating IP67 designed especially for these Plug & Play cameras is made from aluminium featuring a clear polycarbonate window. With its compact size of 62x97x188 millimetres, it comes at a weight of only 900 grams, and its swivel-head mounting bracket gives flexibility to installation on walls or ceilings. The "Easy Installation Cable" pre-cabled video/power supply with outside routing (1.5m long, video: BNC jack; 12/24V input; 2-pin screw-plug connector) makes both installation and maintenance easy as the cable can simply be plugged from underneath. Furthermore the hidden cable management gives protection against manipulation and sabotage. Impressive value for money rounds off these specifications. Features VKC-1368 Weatherproof Camera with Swivel Head Bracket 1/3" Colour CCD Camera with Varifocal Lens Sensitivity of 0.2Lux at F1.2 Enhanced Sharpness Compensation Back Light Compensation (BLC) Automatic Shutter Control (ESC) Illumination by 17 integrated White Light LEDs Dynamic (Light) Intensity Control (DIC) Hidden Cable Routing Protection Rating: IP67 Supply Voltage: 12VDC/24VAC

1/3 inch, Colour / Monochrome, 540 TVL resolution, Digital (DSP), Auto Iris, Direct Drive, 0.24 @ F1.2 lux, 12 V DC, 24 V AC, High Speed, 3.8 ~ 9.5, 752 x 582, Back Light Compensation, Auto Gain Control, White Balance, 0.45, 1/50 ~ 1/100,000, 48, Internal, Line-lock, CCIR/PAL, 1 Vp-p, 75 Ohms, 5.5 W, 60, -10 ~ +50

1/3 inch, Colour / Monochrome, 650 TVL resolution, Auto Iris, Direct Drive, 0.03 @ F1.2 lux, CS mount, 12 V DC, 24 V AC, High Speed, 976 x 582, Back Light Compensation, Auto Gain Control, White Balance, 0.45, 1/50 ~ 1/100,000, 50, Internal, CCIR, PAL, Zoom, 1 Vp-p, 75 Ohms, BNC, 3.6 W, 67.5 x 56 x 124, 265, -10 ~ +50

1/4 inch, Colour / Monochrome, 600 TVL resolution, 0.05 @ F1.2 lux, 12VDC, Motion Activated, 3.9 ~ 85.8, Wide Dynamic Range, 795 x 596, Back Light Compensation, Auto Gain Control, White Balance, 0.45, 1/50 ~ 1/100,000, 50, Internal, CCIR/PAL, Zoom, 4.5 W, 105 x 62 x 70.3, 295, -10 ~ +50, IP40

1/3 inch, Colour / Monochrome, 600 TVL resolution, 0.07 lux, 12 V DC, 24 V AC, 3.8 ~ 9.5, Wall, Ceiling, Wide Dynamic Range, 795 x 596, Back Light Compensation, Auto Gain Control, White Balance, 0.45 / 1.0, 1/50 ~ 1/100,000, 50, Internal, CCIR/PAL, Zoom, 4 W, 190 x 96.5 x 62, 680, -20 ~ +50, IP67

This autumn it’s all about the Candid, because eneo is now really pulling out all the stops with its consistent development of the successful product series. What’s new? The practical bullet cameras are now available for all three technologies: analogue, IP, HDcctv. And across all technologies and in all sizes. Whilst the Candid was previously only available in medium and large, the model series is now finally dimensionally complete with the new Candid Small. And with the introduction of the first thermal cameras, Candid is also positioned more broadly with regard to technology than ever before. A success story The Candid fulfils ultimate requirements placed on security and shape, which is proven by the growing numbers of satisfied customers impressed by the balanced, functional design of the bullet cameras. To say nothing of its technical features. Installers are also convinced as their work has been made immensely easier by the practical plug & play installation of the easy-to-handle bullet camera. No wonder, since it’s exactly the specific practical requirements what our product experts focus on so they can continue providing improvements in the future, through innovative camera technology and intelligent accessories such as the practical camera junction box AK-4. Small but with a performance to be seen: Candid Small With the new Candid Small, eneo has now rounded off the successful bullet camera series that was only available in the M and L sizes until now. Its dimensions have been reduced to a minimum allowing the smallest Candid housing to combine the advantages of the larger Medium and Large models – protection rating IP68, extended temperature range from -40°C to 50°C, integrated IR illumination, plug & play installation – with an extremely compact construction which also makes the housing a good recommendation for discrete indoor surveillance tasks. Just like the Medium and Large models, a 2 megapixel IP camera module (Full HD, 1080p) is also available for the Candid Small. Bigger selection than ever before, including thermal imaging technology Six current new arrivals, three IP and three HDcctv cameras, enrich the model series in the day/night camera product section. They are available in the three sizes small, medium and large. The S and M sizes have a motorised zoom lens with an autofocus function and a focal length of 3-9 mm; the two large models are 2-megapixel cameras with a 20x zoom lens (autofocus). In addition to these brand new cameras which are worth considering for many different types of applications due to their variable focal length, the Candid thermal cameras open up fully new fields of application. The first models are available in a Candid Medium bullet housing, as practical as it is elegant with IP67 protection and designed for fast plug & play installation. These are uncooled thermal imaging systems which operate maintenance-free over many years. That’s why they are the best economical solution wherever objects are to be detected at a maximum distance of 4 km. The new eneo cameras are available with a choice of 5 mm, 9 mm, 13 mm, 19 mm, 25 mm and 35 mm focal lengths with ranges from 330 to 4050 metres. Their thermal sensitivity lies at 50 millikelvin at an ambient temperature of 25°C. There is no technology system question with eneo thermal cameras as they have analogue as well as IP connectivity. By the way, connectivity: each module also has an external USB port. Speaking about our innovations: a Full HD version of the sturdy and versatile Callisto fixed dome is now also available.

1/3 inch, Monochrome, 600 TVL resolution, PCB, 0.75 lux, 12 V DC, 3.8, 752 x 582, 0.45, 1/50 ~ 1/100,000, >50, Internal, CCIR, 1 Vp-p, 75 Ohms, 1.4 W, 30 x 30 x 25, 25

1/3 inch, Colour / Monochrome, 540 TVL resolution, Auto Iris, Direct Drive, 0.23 @ F1.2 lux, CS mount, 12 V DC, 24 V AC, High Speed, Wide Dynamic Range, 795 x 596, Back Light Compensation, Auto Gain Control, White Balance, 0.45, 1/50 ~ 1/120,000, 50, Internal, Line-lock, CCIR, PAL, Zoom, 1 Vp-p, 75 Ohms, BNC, 3.5 W, 300, -10 ~ +50

1/3 inch, Colour / Monochrome, 560 TVL resolution, Auto Iris, 0.07 lux, CS mount, 12 V DC, Wide Dynamic Range, 752 x 582, Back Light Compensation, Auto Gain Control, White Balance, 1/50 ~ 1/100,000 sec, 50, Internal, Line-lock, CCIR, PAL, Zoom, 1Vpp, (C)VBS, 75ohms, BNC, 3.5 W, 260, -10 ~ +50

1/3 inch, Colour / Monochrome, 550 TVL resolution, Digital (DSP), Auto Iris, Direct Drive, 0.18 @ F1.2 lux, 12 V DC, High Speed, 752 x 582, Back Light Compensation, Auto Gain Control, White Balance, 0.45, 1/4 ~ 1/100,000, 48, PAL, 1 Vp-p, 75 Ohms, 1.7 W, 19 x 19 x 54.7, 48, -10 ~ +50, IP67

1/3 inch, Colour / Monochrome, 570 TVL resolution, Infrared, Auto Iris, Direct Drive, 0.06 @ F1.2 lux, 12 V DC, 24 V AC, 3.5 ~ 16, Wall, Wide Dynamic Range, 720 x 540, Back Light Compensation, Auto Gain Control, White Balance, 0.45, 50, Internal, AC Line Lock, PAL, NTSC, Composite (CVBS), 12 W, 100 x 228.5 x 214 x 280, 2,000, -20 ~ +50, IP68

1/4 inch, Colour / Monochrome, 650 TVL resolution, Digital (DSP), 0.08 Lux @ F1.2 lux, 12 V DC, Motion Activated, 3.4 ~ 122.4, Back Light Compensation, Auto Gain Control, White Balance, 0.45, 1/50 ~ 1/100,000, 50, Internal, CCIR, PAL, 4.0 W, 68 x 64 x 119.3, 370

1/3 inch, Monochrome, 420 TVL resolution, PCB, 0.58 lux, 12 V DC, 3.8, Wall, 500 x 582, 0.45, 1/50 ~ 1/100,000, Internal, CCIR, 1 Vp-p, 75 Ohms, 1.2 W, 32 x 32 x 25, 30, -10 ~ +50

1/3 inch, Colour / Monochrome, 540 TVL resolution, Auto Iris, Direct Drive, 12 V DC, Motion Activated, 3.6, Wide Dynamic Range, 720 x 540, Back Light Compensation, Auto Gain Control, White Balance, 0.45, 1/50 ~ 1/100,000, 50, PAL/NTSC, Zoom, 2 W, 130, -10 ~ +50
