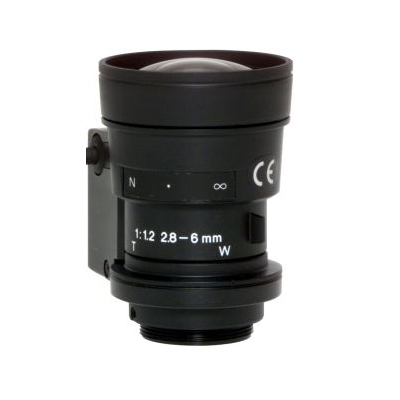

eneo F03Z02NDDC CCTV camera lens

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: eneo
Model code: F03Z02NDDC
Lens Format inches: 1/3 inch
Focal Length mm: 2.8 ~ 6 mm focal length
Iris Type: Manual Iris

Additional info:

Suitable for 1/2" and 1/3" colour and monochrome cameras. High standard of optical and mechanical quality. Adjustable slip-ring mount for cable positioning.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	eneo
Manufacturer	eneo
Category	CCTV>CCTV camera lenses
Model code	F03Z02NDDC
Lens Format inches	1/3 inch
Focal Length mm	2.8 ~ 6 mm focal length
Iris Type	Manual Iris
Lens Mount	CS mount
IR Corrected (Aspherical)	Yes
F-Stop	1.4 ~ 64 F-stop
Direct Drive	Yes
Angle (Field) of View ^o	88.7 ~ 44.2
Physical Specifications	Dimensions mm: 60 x 43 x 37.5 Weight g: 95
Varifocal	Yes
Additional info	Suitable for 1/2" and 1/3" colour and monochrome cameras. High standard of optical and mechanical quality. Adjustable slip-ring mount for cable positioning.
