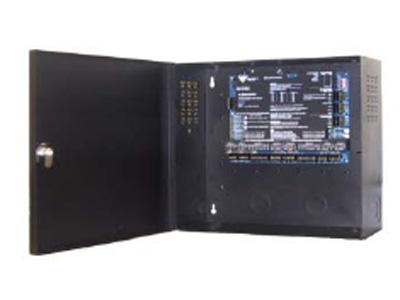

DSX DSX-0X4 Access control controller

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: DSX
Model code: DSX-0X4
Communication Type: RS-232, RS-485
Voltage: 12 V DC
Power Consumption: 300 mA

Additional info:

Four relay extender for the DSX-1022 and DSX-1042 controllers. This module provides four fully functional fused relay outputs. Relays rated at 5A at 30VDC / 125VAC with the common terminals fused at 1A. The module Mounts on a 1040E Rail or on 4 Adhesive Standoffs.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	DSX
Manufacturer	DSX - Europe Ltd.
Category	Access Control>Access control controllers
Model code	DSX-0X4
Communication Type	RS-232, RS-485
Electrical Specifications	Voltage: 12 V DC Power Consumption: 300 mA
Physical Specifications	Dimensions mm: 134.6 x 114.3 x 33
Accessories	Four Relay Extender
Additional info	Four relay extender for the DSX-1022 and DSX-1042 controllers. This module provides four fully functional fused relay outputs. Relays rated at 5A at 30VDC / 125VAC with the common terminals fused at 1A. The module Mounts on a 1040E Rail or on 4 Adhesive Standoffs.
