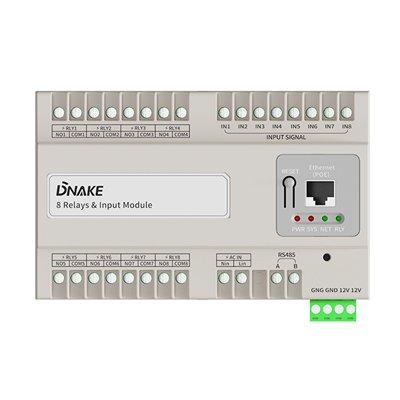

DNAKE RIM08 8 Relays & Input Module

Technical Specification

Features:

Make: DNAKE
Model code: RIM08
Operating Temperature ^oC: -10 ~ +55 C (14 ~ 131 F)
Operating Humidity %: 10 ~ 90
Voltage: 12 V DC, PoE

Additional info:

Multi-input/output: support up to eight channels of switch signal input and eight channels of output control over electrical appliances Remote control by Smart Pro APP or indoor monitor 280M-S3 Support the control of a variety of different devices, such as lights, heating, natural gas, curtains, water valves, etc. Security linkage with indoor monitor to trigger automatic actions Powered by PoE or power adapter (DC12V/2A) Household connection of up to 9 modules for 72 electrical devices DIN-rail installation

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	DNAKE
Manufacturer	DNAKE
Category	Access Control>Access control systems & kits
Model code	RIM08
Environmental Specifications	Operating Temperature ^oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 5W
Physical Specifications	Dimensions mm: 91 x 145 x 61
Additional info	Multi-input/output: support up to eight channels of switch signal input and eight channels of output control over electrical appliances Remote control by Smart Pro APP or indoor monitor 280M-S3 Support the control of a variety of different devices, such as lights, heating, natural gas, curtains, water valves, etc. Security linkage with indoor monitor to trigger automatic actions Powered by PoE or power adapter (DC12V/2A) Household connection of up to 9 modules for 72 electrical devices DIN-rail installation
