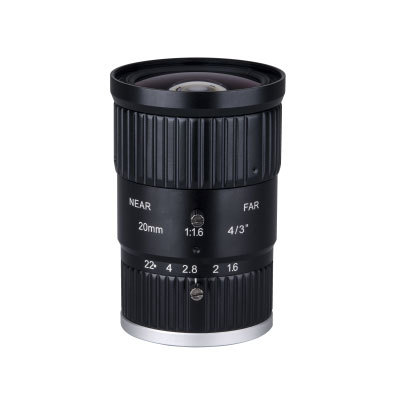

Dahua Technology PLF2180-M 8 MegaPixel 4/3" 20mm Fixed Lens
Technical Specification
| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology Ltd |
| Category | CCTV>CCTV camera lenses |
| Model code | PLF2180-M |
| Lens Type | Fixed |
| Zoom type | Manual |
| Focal Length mm | 20 mm focal length |
| Iris Type | Manual Iris |
| Lens Mount | C mount |
| F-Stop | F1.6-22 F-stop |
| Filter Size mm | M52x0.5 |
| Minimum Object Distance m | 1 |
| Physical Specifications |
Dimensions mm: 54 x 85 Weight g: 415 |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +70 C (-22 ~ +158 F) Operating Humidity %: < 90 |
| Additional info |
Dahua PLF2180-M is an 8MP 4/3" 20mm fixed lens. |
