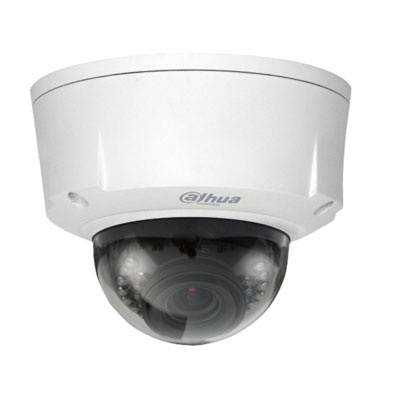

Dahua Technology IPC-HDB5502-DI 5MP colour monochrome full HD network motorised IR dome camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology IPC-HDB5502-DI 5MP colour monochrome full HD network motorised IR dome camera

Features:

Make: Dahua Technology
Model code: IPC-HDB5502-DI
Chip Inch Size: 1/3 inch
Colour Type: Colour / Monochrome
Resolution TVL: 5 MP

Additional info:

Dahua Technology IPC-HDB5502-DI is a 5MP colour monochrome full HD network motorised IR dome camera that features H.264 & MJPEG dual-stream encoding and 4 ~ 9 mm varifocal motorised lens.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology Ltd
Category	CCTV>IP Dome cameras
Model code	IPC-HDB5502-DI
Chip Inch Size	1/3 inch
Colour Type	Colour / Monochrome
Resolution TVL	5 MP
HD	Yes
Megapixel	Yes
Dome Type	Static
Sensitivity lux	0.01
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC/PoE Power Consumption: 5 W
Focal length	4 ~ 9
Compression	H.264 H/H.264B/H.264/MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3 ~ 1/10000
S/ N (Signal/ Noise) Ratio dB	>50
Built-in IR LED	Yes
Video Output	1 channel, BNC(1.0Vp-p / 75 ohm)
Network Properties	Interface: RJ - 45 (10/100Base - T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour Image Frame Rate: 30 fps Inclusive DVR/ Web Server: Micro SD
Physical Specifications	Dimensions mm: 168 x 140 Weight g: 1,250
Environmental Specifications	Operating Temp ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: <90 Protection: IP66, IK10
Additional info	Dahua Technology IPC-HDB5502-DI is a 5MP colour monochrome full HD network motorised IR dome camera that features H.264 & MJPEG dual-stream encoding and 4 ~ 9 mm varifocal motorised lens.
