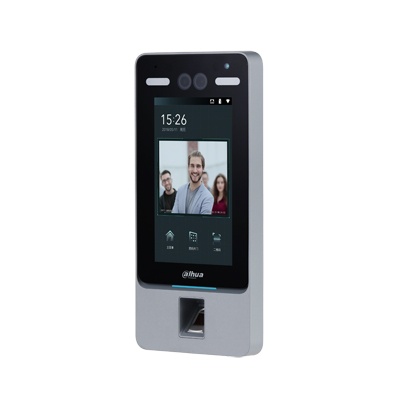

Dahua Technology Face Recognition AC

Human face images, fingerprints, cards and passwords can be recorded to the face recognition access standalone.
With face detection box; the largest face among faces that appear at the same time is recognised first; the maximum face size can be configured on the web.
Face recognition distance is 0.3m–2m , human height range is 1.1m–2.4m.
Face verification accuracy>99%; face comparison speed ≤0.5s per person; false recognition rate<0.1%.
Profile faces can be recognised; face recognition angle can be adjusted, the range is 0°–90°.
Supports 30,000 users, 30,000 cards, 30,000 passwords, and 50 administrators.
Support liveness detection.
Supports duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, and illegal card exceeding time alarm.
Has six user levels: general users, patrol users, blacklist users, VIP users, guests, and disabled users.
Attendance records can be uploaded to the management platform

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology Ltd
Category	Access Control>Access control systems & kits
Model code	DHI-ASI7214Y
Standalone/ Networked/ PC	Standalone
Reader Type	Biometric
Max Doors per System	1 doors/system
No of Cardholders	30,000
Environmental Specifications	Operating Temperature ^oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 5 ~ 95
Electrical Specifications	Voltage: 12 V DC Power Consumption: 15 W
Physical Specifications	Dimensions mm: 283 x 130 x 35 Weight g: 1500
Additional info	7 inch LCD, touchscreen, resolution 1024 (H) × 600 (V). Human face images, fingerprints, cards and passwords can be recorded to the face recognition access standalone. Face recognition distance is 0.3 m–2 m , human height range is 1.1 m–2.4 m. Supports 30, 000 users, 30, 000 cards, 30, 000 passwords, and 50 administrators.
