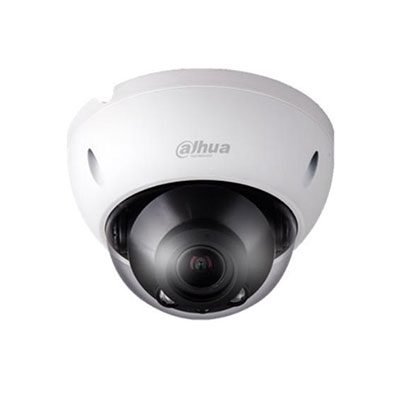

Dahua Technology DH-IPC-HDBW2120R-VFS 1.3MP HD network IR dome camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-IPC-HDBW2120R-VFS
  • Chip Inch Size: 1/3
  • Colour Type: Colour / Monochrome
  • Resolution TVL: 1.3 MP
Read more
Additional info:

1/3” 1.3Megapixel progressive scan CMOS H.264 & MJPEG dual-stream encoding 25/30fps@1.3M(1280×960) DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.7~12mm varifocal lens Max IR LEDs Length 30m IP67, IK10, PoE Micro SD card slot, up to 128GB

Read more
Make Dahua Technology
Manufacturer Dahua Technology Ltd
Model code DH-IPC-HDBW2120R-VFS
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 1.3 MP
HD Yes
Megapixel Yes
Sensitivity lux 0.01
Dome Type Static
Digital (DSP) Yes
Mount Type Board - in
Electrical Specifications Voltage: 12 V DC
Power Consumption: 5 W
Focal length 2. 7 ~ 12 mm
Compression H.264 / H.264H / M JPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/3 (4) ~ 1/100000s
S/ N (Signal/ Noise) Ratio dB >50
Built-in IR LED Yes
Network Properties Interface: RJ - 45 (10/100Base - T)
Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Physical Specifications Dimensions mm: 122 × 89
Weight g: 500
Environmental Specifications Operating Temp oC: -30 ~ +60 C (-22 ~ +140 F)
Operating Humidity %: < 95
Protection: IP67, IK10
Additional info
  • 1/3” 1.3Megapixel progressive scan CMOS
  • H.264 & MJPEG dual-stream encoding
  • 25/30fps@1.3M(1280×960)
  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.7~12mm varifocal lens
  • Max IR LEDs Length 30m
  • IP67, IK10, PoE
  • Micro SD card slot, up to 128GB
