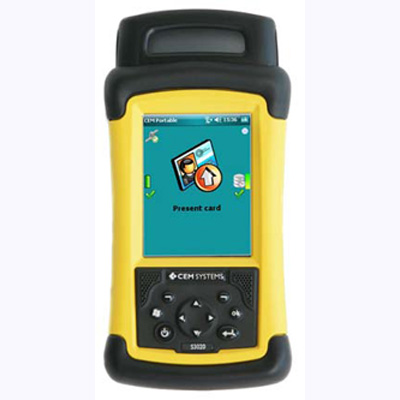

CEM S3020 Portable handheld card reader

Technical Specification

Features:
  • Make: CEM
  • Model code: S3020
  • Series: WISENET X SERIES
  • Reader Type: Card Swipe
  • Voltage: 2.4 V DC
Additional info:

The S3020 Portable Reader is a lightweight, waterproof, and rugged hand-held card reading device. It can be used for ID card validation at remote sites or temporary entrances which have no power, and can also be used as a mobile device for random checks within pre-defined zones. Upto 200,000 card ID's can be held in the reader's database for differentiation between authorised and unauthorised personnel. Up to 8,000 offline card swipe transactions can also be stored for on-line transmission to the AC2000 system via built-in 802.11g WiFi connection, (supports WPA2-AES Encryption).

Read more
Make CEM
Manufacturer CEM Systems Ltd
Model code S3020
Series WISENET X SERIES
Reader Type Card Swipe
Electrical Specifications Voltage: 2.4 V DC
Physical Specifications Dimensions mm: 205 x 95 x 45
Weight g: 550
Environmental Specifications Operating Temp oC: -30 ~ +60
Protection IP67
Additional info The S3020 Portable Reader is a lightweight, waterproof, and rugged hand-held card reading device. It can be used for ID card validation at remote sites or temporary entrances which have no power, and can also be used as a mobile device for random checks within pre-defined zones. Upto 200,000 card ID's can be held in the reader's database for differentiation between authorised and unauthorised personnel. Up to 8,000 offline card swipe transactions can also be stored for on-line transmission to the AC2000 system via built-in 802.11g WiFi connection, (supports WPA2-AES Encryption).
