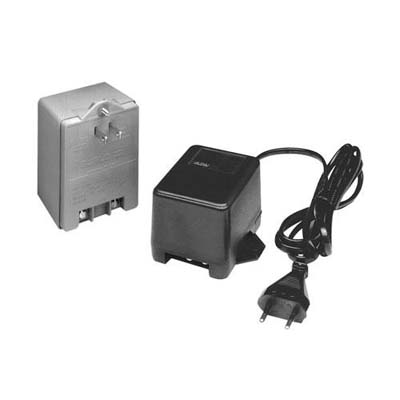

Bosch TC1382 Power supply & battery

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Bosch
Model code: TC1382
Input Voltage: 24 V AC
Dimension mm: 82.6 x 51 x 50
Weight g: 450

Additional info:

Isolation transformer is recommended for installation using cameras without built-in isolation transformer. A separate power transformer should be used for each camera. If a single power transformer or other 24VAC power source is used to power multiple cameras, TC1382 Isolation Transformer is recommended between the power transformer or the 24VAC power source and each of the cameras.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Bosch
Manufacturer	Bosch Security Systems
Category	CCTV>Power supplies & batteries
Model code	TC1382
Input Voltage	24 V AC
Physical Specifications	Dimension mm: 82.6 x 51 x 50 Weight g: 450
Additional info	Isolation transformer is recommended for installation using cameras without built-in isolation transformer. A separate power transformer should be used for each camera. If a single power transformer or other 24VAC power source is used to power multiple cameras, TC1382 Isolation Transformer is recommended between the power transformer or the 24VAC power source and each of the cameras.
