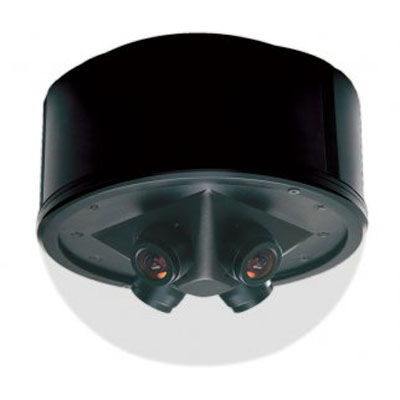

Arecont Vision AV8360 panoramic network dome camera
Technical Specification
| Make | AV Costar |
|---|---|
| Manufacturer | AV Costar (Arecont Vision) |
| Previously known as | Arecont Vision |
| Category | CCTV>IP Dome cameras |
| Model code | AV8360 |
| Chip Inch Size | 1/2 inch |
| Colour Type | Colour |
| Resolution TVL | 1600 x 1200 |
| Sensitivity lux | 0.2 lux @ F2.0 |
| Dome Type | Continuous Rotation |
| Mount Type | Ceiling, Wall mount |
| Compression | MJPEG |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| S/ N (Signal/ Noise) Ratio dB | 45 |
| Network Properties |
Interface: 100Base-T Ethernet Network Protocols: TFTP, HTTP Image Frame Rate: 88 fps |
| Electrical Specifications | Power Consumption: 7.8 Watts max. |
| Physical Specifications | Weight g: 1,815 |
| Environmental Specifications |
Operating Temp oC: -20 ~ +50 Operating Humidity %: 0 ~ 90 (non-condensing) |
| Additional info | Delivers full motion progressive scan. |
