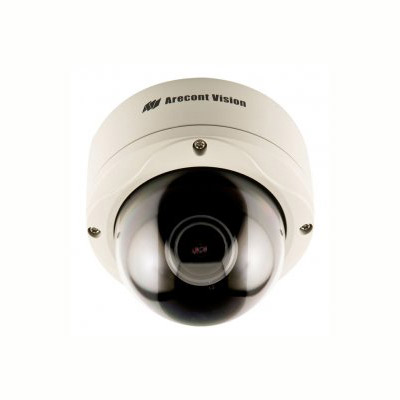

Arecont Vision's new H.264 MegaDome™ megapixel IP cameras

Product Profile

Arecont Vision expands its full line of H.264 megapixel network cameras with the addition of the MegaDome™ series, integrating the camera, lens and housing into an all-in-one solution. Available in colour or day/night versions and with 1.3M, 2M, 3M or 5 megapixel sensors, the dome cameras incorporate Arecont Vision's fully-compliant implementation of H.264 (MPEG 4, Part 10) compression that uses up to 10 times on average less bandwidth and storage compared to megapixel counterparts using M-JPEG compression.

The MegaDome™ series simultaneously supports H.264 and M-JPEG at full frame rates. Multi-streaming provides up to eight concurrent non-identical streams with variable frame rates, bit rates, resolutions and picture quality.

Bit rate control, available for full view, multi-view and archive, maintains desired bandwidth and storage size. Real-time streaming protocol (RTSP) allows compatibility with media players such as Apple QuickTime, Windows Media Player, VLC Player and others.

The Arecont Vision MegaDome™ cameras also offer user-selectable full or 1/4 resolution for either live viewing or archiving. Other key features include 1/2-inch CMOS sensor for superior light performance, simultaneous full field of view and region-of-interest (ROI) transmission as well as image cropping to allow streaming of full density partial images, on-camera motion detection, and a motorised IR cut filter (on the day/night versions).

Visit Arecont Vision at IFSEC UK, booth #B135, hall 5.

ViDiCore KG is the authorised European exclusive representative for Arecont Vision.
Read more

Technical Specification

Make Arecont Vision
Manufacturer Arecont Vision
Model code AV5155
Chip Inch Size 1/2
Colour Type Colour / Monochrome
Resolution TVL 2592 x 1944
Sensitivity lux 0.0
Dome Type Variable Focus
Indoor/Outdoor Indoor/Outdoor
Digital (DSP) Yes
Mount Type Pendant, Wall
Electrical Specifications Voltage: 12~48 V DC, PoE
Power Consumption: 5W
Focal length 4~10
Rotation Angleso 360 (pan), 90 (tilt)
Compression H.264, MPEG-4, JPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB 45
Built-in IR LED Yes
Network Properties Interface: 100Base-T Ethernet
Network Protocols: TFTP, HTTP, RTSP
Control: PTZ
Image Frame Rate: 32 fps
Physical Specifications Dimensions mm: 140.3 (dia) x 124.6
Weight g: 910
Environmental Specifications Operating Temp oC: -20 ~ +50
Operating Humidity %: 0 ~ 90
Protection: IP66
Additional info On-camera real-time motion detection with 64 detection zones. 50/60Hz selectable flicker control. Programmable shutter speed to help control motion blur. Programmable resolution, brightness, saturation, gamma, sharpness, tint.
