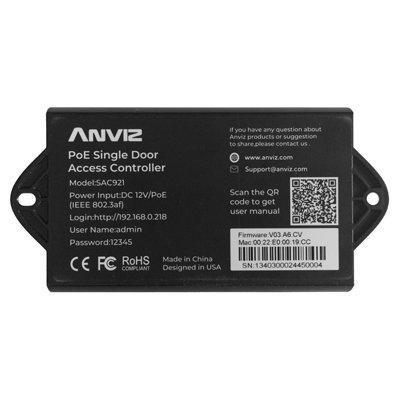

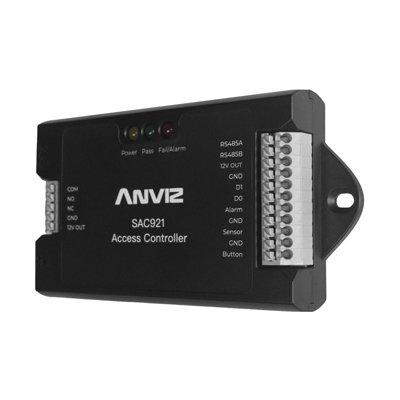

Anviz SAC921 Single Door Access Controller

Technical Specification

Features:

Make: Anviz
Model code: SAC921
No of Cardholders: 3,000
Communication Type: TCP/IP, WiFI, 1Wiegand, OSDP over RS485
Universal / Wiegand Reader Interface: Yes

Additional info:

Anviz Single Door Controller SAC921 is a compact access control unit for up to one entry and two readers. Using Power-over-Ethernet (PoE) for power simplifies installation and internal web server management it’s easily set up with the Admin. Anviz SAC921 access control offers a secure and adaptable solution, making it ideal for small offices or decentralized deployments. Features: IEEE 802.3af PoE Power Supply Support OSDP & Wiegand Readers Internal Webserver Management Customizable Alarm Input Real-time Monitoring of Access Control Status Support Anti Passback Setup for One Door 3,000 User Capacity and 16 Access Groups CrossChex Standard Management Software

Contact manufacturer Contact manufacturer

Make	Anviz
Manufacturer	Anviz Global Inc.
Category	Access Control>Access control controllers
Model code	SAC921
No of Cardholders	3,000
Communication Type	TCP/IP, WiFI, 1Wiegand, OSDP over RS485
Universal / Wiegand Reader Interface	Yes
Electrical Specifications	Voltage: 12 V DC / PoE
Environmental Specifications	Operating Temp ^oC: -10 ~ +60C (14 ~ 140 F) Operating Humidity %: 20 ~ 90
Additional info	Anviz Single Door Controller SAC921 is a compact access control unit for up to one entry and two readers. Using Power-over-Ethernet (PoE) for power simplifies installation and internal web server management it’s easily set up with the Admin. Anviz SAC921 access control offers a secure and adaptable solution, making it ideal for small offices or decentralized deployments. Features: IEEE 802.3af PoE Power Supply Support OSDP & Wiegand Readers Internal Webserver Management Customizable Alarm Input Real-time Monitoring of Access Control Status Support Anti Passback Setup for One Door 3,000 User Capacity and 16 Access Groups CrossChex Standard Management Software
