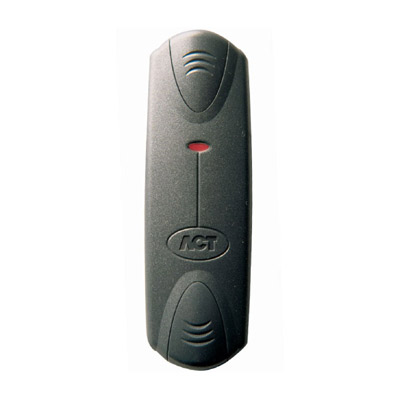

ACTpro-X 1030 - a robust, slimline Proximity card reader from ACT

Technical Specification

Features:
  • Make: ACT
  • Model code: ACTpro-X 1030
  • Series: ACTPro Series
  • Reader Type: Proximity
  • Standalone/ Networkable: Networkable
Read more
Additional info:

The ACTpro-X 1030 slimline Proximity Reader is used to read data stored on proximity cards or fobs.  The data is passed to the ACTpro 1000/2000/3000 controller, which decides to allow access or not.  The ACTpro-X 1030 reader has a robust polycarbonate housing and potted electronics and can be Clock & Data or Wiegand in output.

Read more
Make ACT
Manufacturer Access Control Technology
Model code ACTpro-X 1030
Series ACTPro Series
Reader Type Proximity
Standalone/ Networkable Networkable
IP Rating IP67
Mount Type Surface
LED / Beep LED / Beep
Wiegand Interface Yes
Electrical Specifications Voltage: 5 ~ 12 V DC
Power Consumption: 40 mA
Physical Specifications Dimensions mm: 13 x 36 x 108
Weight g: 200
Environmental Specifications Operating Temp oC: -10 ~ +50
Additional info

The ACTpro-X 1030 slimline Proximity Reader is used to read data stored on proximity cards or fobs.  The data is passed to the ACTpro 1000/2000/3000 controller, which decides to allow access or not.  The ACTpro-X 1030 reader has a robust polycarbonate housing and potted electronics and can be Clock & Data or Wiegand in output.
