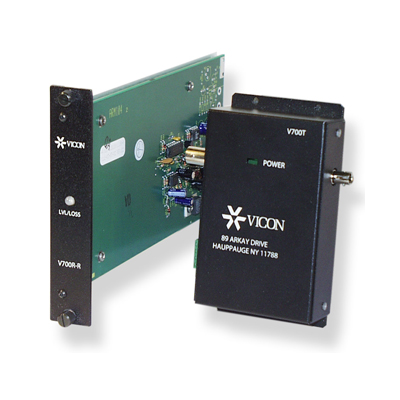

Vicon V700T Telemetry transmitters and controllers

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vicon V700T Telemetry transmitters and controllers

Features:

Make: Vicon
Model code: V700T
Series: V700 Series
Telemetry Type: Fibre-Optic
Video Inputs: 1 channels

Additional info:

The V700 series can withstand an optical signal loss of up to 13 dB over 62.5-um cable. The V700 is set up for 62.5-um cable. It requires no adjustments. The transmitter and receiver are available in standalone or rack-mount configurations.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vicon
Manufacturer	Vicon Industries
Category	CCTV>Telemetry transmitters and controllers
Model code	V700T
Telemetry Type	Fibre-Optic
Video Inputs	1 channels
Video Outputs	1 outputs
Signal Mode	PAL, NTSC
Fibre Optic	Yes
Bandwidth MHz	8
Environmental Specifications	Operating Humidity %: 0 ~ 95 Operating Temp ^oC: -40 ~ +75
Cross Talk dB	13
Electrical Specifications	Voltage: 12~16 VAC Power Consumption: 1.4 W
Physical Specifications	Dimensions mm: 30 x 94 x 125 Weight g: 140
Additional info	The V700 series can withstand an optical signal loss of up to 13 dB over 62.5-um cable. The V700 is set up for 62.5-um cable. It requires no adjustments. The transmitter and receiver are available in standalone or rack-mount configurations.
