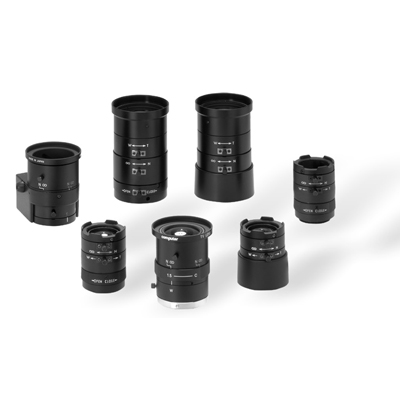

Vicon V3.5-8VFI-2

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Vicon
Model code: V3.5-8VFI-2
Zoom type: Zoom
Lens Format inches: 1/3 inch
Focal Length mm: 3.5 ~ 8 mm focal length

Additional info:

These lenses eliminate the need for trial-and-error lens fitting and for stocking multiple fixed-focal-length lenses to cover different viewing angles.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vicon
Manufacturer	Vicon Industries
Category	CCTV>CCTV camera lenses
Model code	V3.5-8VFI-2
Zoom type	Zoom
Lens Format inches	1/3 inch
Focal Length mm	3.5 ~ 8 mm focal length
Iris Type	Manual Iris
Lens Mount	CS mount
F-Stop	1.4 F-stop
Zoom Ratio	2.286x zoom
Angle (Field) of View ^o	77.6 ~ 35.4
Physical Specifications	Dimensions mm: 48 x 33 Weight g: 38
Environmental Specifications	Operating Temperature ^oC: -20 ~ +50
Varifocal	Yes
Additional info	These lenses eliminate the need for trial-and-error lens fitting and for stocking multiple fixed-focal-length lenses to cover different viewing angles.
