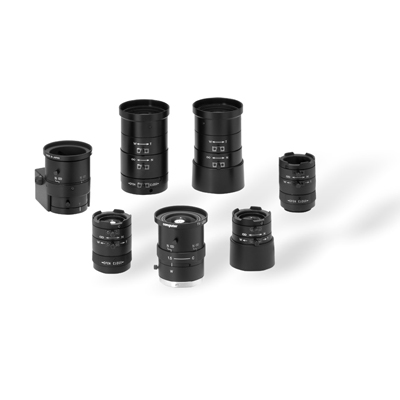

Vicon V2.8-12VF-CS-G CCTV camera lens

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Vicon
Model code: V2.8-12VF-CS-G
Zoom type: Zoom
Lens Format inches: 1/3 inch
Focal Length mm: 2.8 ~ 12 mm focal length

Additional info:

These lenses eliminate the need for trial-and-error lens fitting and for stocking multiple fixed-focal-length lenses to cover different viewing angles.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vicon
Manufacturer	Vicon Industries
Category	CCTV>CCTV camera lenses
Model code	V2.8-12VF-CS-G
Zoom type	Zoom
Lens Format inches	1/3 inch
Focal Length mm	2.8 ~ 12 mm focal length
Iris Type	Auto Iris
Lens Mount	CS mount
F-Stop	1.4 F-stop
Zoom Ratio	4.29x zoom
Direct Drive	Yes
Angle (Field) of View ^o	98.2 ~ 23.8
Minimum Object Distance m	0.3
Physical Specifications	Dimensions mm: 56 x 54 Weight g: 80
Environmental Specifications	Operating Temperature ^oC: -20 ~ +50
Varifocal	Yes
Additional info	These lenses eliminate the need for trial-and-error lens fitting and for stocking multiple fixed-focal-length lenses to cover different viewing angles.
