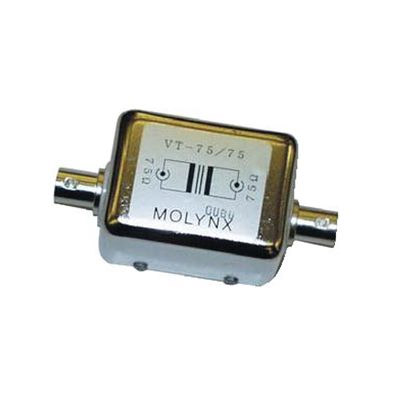

Siemens VT75-75 video transformer - 75 coax ohm input/output

Technical Specification

Features:
  • Make: Vanderbilt
  • Model code: VT75-75
  • No of Video Inputs: 1
  • No of Video Outputs: 1
  • Bandwidth MHz: 20 Hz ~ 9 MHz
Additional info:

Video transformer.  Achieves ground loop isolation on a video cable: i.e. removes earth loops.  VT75-75 - 75 ohm coax in / 75 ohm coax out.  Compatible with ‘C' type telemetry.  Connection: BNC for 75 ohm cables.  Impedance: 75 ohms unbalanced.  Reversible input/output.  RLR: >20dB.  Video Loss: 1dB @ 8Mhz.  Environment: internal only.

Read more
Make Vanderbilt
Manufacturer Vanderbilt Industries
Model code VT75-75
No of Video Inputs 1
No of Video Outputs 1
Bandwidth MHz 20 Hz ~ 9 MHz
Physical Specifications Dimensions mm: 41 x 90 x 32
Additional info

Video transformer.  Achieves ground loop isolation on a video cable: i.e. removes earth loops.  VT75-75 - 75 ohm coax in / 75 ohm coax out.  Compatible with ‘C' type telemetry.  Connection: BNC for 75 ohm cables.  Impedance: 75 ohms unbalanced.  Reversible input/output.  RLR: >20dB.  Video Loss: 1dB @ 8Mhz.  Environment: internal only.
