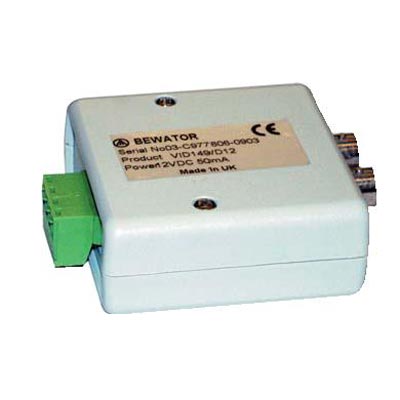

Vanderbilt VID149 Video signal device

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Vanderbilt
Model code: VID149
Dimensions mm: 50 x 92 x 20
Weight g: 78
Voltage: 12 V DC

Additional info:

Reduces intensity of bright white lights (e.g. headlights), so that details around light (e.g. persons in car) can be seen. Should be used only with a video auto iris lens / Direct drive lens. Adjustable threshold and greyscale. The threshold is set to the brightest level that the user wants to be inverted. The greyscale is the colour which the inverted parts changes to (between black and light grey).

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	CCTV>Video signal devices & accessories
Model code	VID149
Physical Specifications	Dimensions mm: 50 x 92 x 20 Weight g: 78
Electrical Specifications	Voltage: 12 V DC
Accessories	Peak White Inverter
Additional info	Reduces intensity of bright white lights (e.g. headlights), so that details around light (e.g. persons in car) can be seen. Should be used only with a video auto iris lens / Direct drive lens. Adjustable threshold and greyscale. The threshold is set to the brightest level that the user wants to be inverted. The greyscale is the colour which the inverted parts changes to (between black and light grey).
