Technical Specification

Features:
  • Make: Vanderbilt
  • Model code: SC500
  • Reader Type: Smart Card
  • Standalone/ Networkable: Networkable
  • IP Rating: IP67
Read more
Additional info:

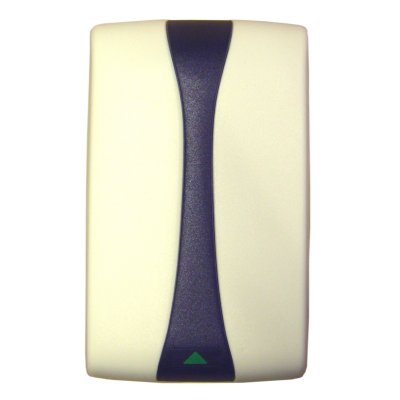

The SC500 is a smart card reader with small dimensions.  The reader has a tight plastic enclosure, which makes the installation and location simple in various environments.

Read more
Make Vanderbilt
Manufacturer Vanderbilt Industries
Model code SC500
Reader Type Smart Card
Standalone/ Networkable Networkable
IP Rating IP67
Mount Type Wall
Read Range mm 70
LED / Beep LED
Wiegand Interface Yes
Clock-and-Data Interface Yes
Electrical Specifications Voltage: 10 ~ 30 V DC
Power Consumption: 130 mA
Physical Specifications Dimensions mm: 44 x 110 x 24
Environmental Specifications Operating Temp oC: -40 ~ +55
Additional info The SC500 is a smart card reader with small dimensions.  The reader has a tight plastic enclosure, which makes the installation and location simple in various environments.
