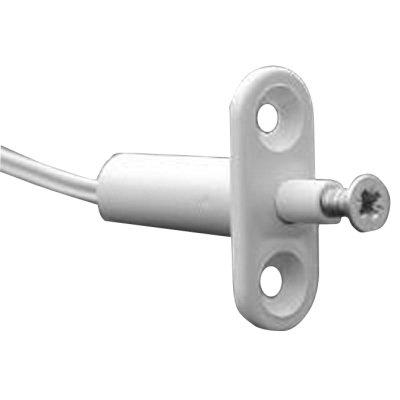

Vanderbilt RK Smart 4050.0 smart interlock switch contact

Technical Specification

Features:
  • Make: Vanderbilt
  • Model code: RK Smart 4050.0
  • Series: Surveillance Contacts
  • Door Contacts: Yes
  • Dimensions mm: 26 x 10 x 24
Additional info:

The Vanderbilt RK Smart 4050.0 smart interlock switch contact is characterized by its extremely low installation size and is mounted with its longitudinal axis parallel to the axis of movement of the bolt in the door frame. It is universally usable for frames made of wood, plastic, metal, etc. It is actuated by the bolt pushes the locking pin of the contact into the housing. This actuating pin is not in the center of the mounting flange. Therefore it is possible to adjust the position of the actuating pin to the respective installation conditions.

Read more
Make Vanderbilt
Manufacturer Vanderbilt Industries
Model code RK Smart 4050.0
Series Surveillance Contacts
Door Contacts Yes
Physical Specifications Dimensions mm: 26 x 10 x 24
Additional info

The Vanderbilt RK Smart 4050.0 smart interlock switch contact is characterized by its extremely low installation size and is mounted with its longitudinal axis parallel to the axis of movement of the bolt in the door frame. It is universally usable for frames made of wood, plastic, metal, etc. It is actuated by the bolt pushes the locking pin of the contact into the housing. This actuating pin is not in the center of the mounting flange. Therefore it is possible to adjust the position of the actuating pin to the respective installation conditions.
