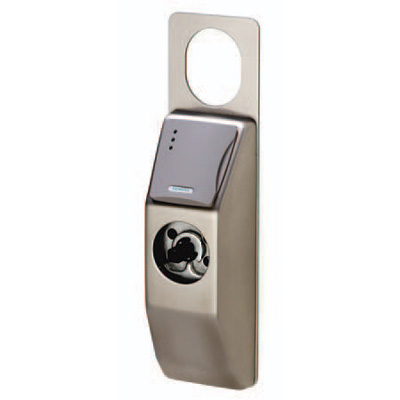

Siemens PD30-EM is a system prox reader with an integrated electromechanical lock.
Technical Specification
- Make: Vanderbilt
- Model code: PD30-EM
- Series: Proximity Series
- Reader Type: Proximity
- IP Rating: IP30
Prox Codoor is a system Prox reader for SiPass Entro with an integrated electromechanical lock. It is an "all-in-one reader" and is an efficient way to meet any indoor security needs. Since the reader is mounted straight onto a standard lock case‚ you do not have to make any cuts in the door other than those required for the cables for power and communication. PD30-EM is suitable for lock cases with a distance of between 105 mm and 116 mm between the center of the door handle and the center of the lock cylinder. It is designed for use with Scandinavian lock cases.
Read more| Make | Vanderbilt |
|---|---|
| Manufacturer | Vanderbilt Industries |
| Category | Access Control>Access control readers |
| Model code | PD30-EM |
| Reader Type | Proximity |
| IP Rating | IP30 |
| Read Range mm | 30 mm |
| LED / Beep | LED |
| Colour | Silver |
| Clock-and-Data Interface | Yes |
| Electrical Specifications |
Voltage: 8 ~ 40 V DC Power Consumption: 100 mA |
| Physical Specifications |
Dimensions mm: 64 x 250 x 64 Weight g: 1,000 |
| Environmental Specifications | Operating Temp oC: 0 ~ 50 |
| Additional info |
Prox Codoor is a system Prox reader for SiPass Entro with an integrated electromechanical lock. It is an "all-in-one reader" and is an efficient way to meet any indoor security needs. Since the reader is mounted straight onto a standard lock case‚ you do not have to make any cuts in the door other than those required for the cables for power and communication. PD30-EM is suitable for lock cases with a distance of between 105 mm and 116 mm between the center of the door handle and the center of the lock cylinder. It is designed for use with Scandinavian lock cases. |
