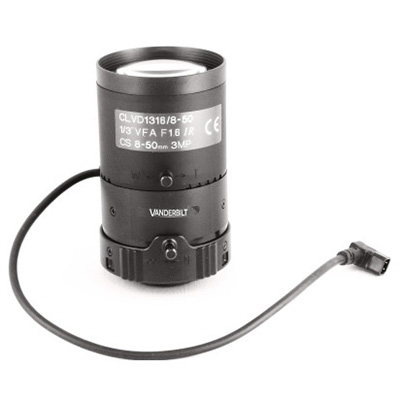

Vanderbilt M13VG850IR 3MP varifocal CS varifocal lens

Technical Specification

Features:
  • Make: Vanderbilt
  • Model code: M13VG850IR
  • Lens Type: Varifocal
  • Zoom type: Manual
  • Lens Format inches: 1/3
Read more
Additional info:

The CLVD1316/8-50 is a 1/3" Full HD Megapixel varifocal lens with direct drive Auto Iris. Its benefits from high performance aspherical glass that compliments its exceptionally high 3 Mega Pixel resolution, that provides detailed image definition, making this an ideal lens for use with megapixel cameras. The IR correction ensures the best possible image quality in visible and infrared lightning. Adjustable screw locks ensure focal-length and focus adjustments are easy to set up and secure.

Read more
Make Vanderbilt
Manufacturer Vanderbilt Industries
Model code M13VG850IR
Lens Type Varifocal
Zoom type Manual
Lens Format inches 1/3
Focal Length mm 8 ~ 50
Iris Type Auto Iris
Lens Mount CS
F-Stop F1.6 ~ F360
IR Corrected (Aspherical) Yes
Direct Drive Yes
Minimum Object Distance m 0.3
Physical Specifications Dimensions mm: 73
Weight g: 170
Electrical Specifications Voltage: 4 V
Environmental Specifications Operating Temperature oC: -20 ~ +60 C (-4 ~ +140 F)
Varifocal Yes
Additional info

The CLVD1316/8-50 is a 1/3" Full HD Megapixel varifocal lens with direct drive Auto Iris. Its benefits from high performance aspherical glass that compliments its exceptionally high 3 Mega Pixel resolution, that provides detailed image definition, making this an ideal lens for use with megapixel cameras. The IR correction ensures the best possible image quality in visible and infrared lightning. Adjustable screw locks ensure focal-length and focus adjustments are easy to set up and secure.
