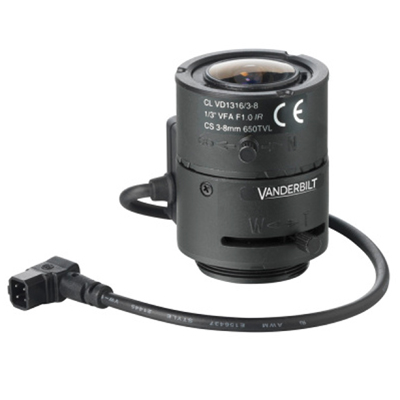

Vanderbilt M13VG308 Megapixel Varifocal Lens 3–8mm CS mount

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vanderbilt M13VG308 Megapixel Varifocal Lens 3–8mm CS mount

Features:

Make: Vanderbilt
Model code: M13VG308
Lens Type: Varifocal
Lens Format inches: 1/3 inch
Focal Length mm: 3 ~ 8 mm focal length

Additional info:

This is a 1/3" Megapixel varifocal lens with direct drive Auto Iris. Its benefits from high performance aspherical glass that compliments its exceptionally high resolution, that provides detailed image definition, making this an ideal lens for use with megapixel cameras. Adjustable screw locks ensure focal-length and focus adjustments are easy to set up and secure.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	CCTV>CCTV camera lenses
Model code	M13VG308
Lens Type	Varifocal
Lens Format inches	1/3 inch
Focal Length mm	3 ~ 8 mm focal length
Iris Type	Auto Iris
Lens Mount	CS mount
IR Corrected (Aspherical)	Yes
F-Stop	F1.0 ~ F360 F-stop
Direct Drive	Yes
Angle (Field) of View ^o	35.4 ~ 92.5
Minimum Object Distance m	0.3
Physical Specifications	Dimensions mm: 58 Weight g: 75
Environmental Specifications	Operating Temperature ^oC: -20 ~ +60 C (-4 ~ +140 F)
Additional info	This is a 1/3" Megapixel varifocal lens with direct drive Auto Iris. Its benefits from high performance aspherical glass that compliments its exceptionally high resolution, that provides detailed image definition, making this an ideal lens for use with megapixel cameras. Adjustable screw locks ensure focal-length and focus adjustments are easy to set up and secure.
