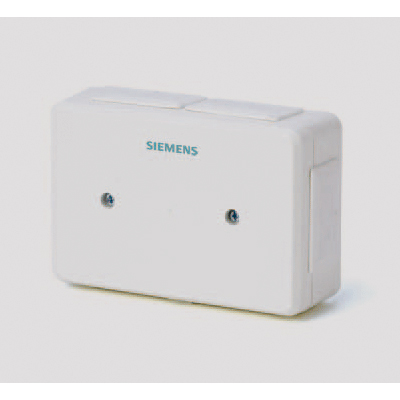

Siemens DC01 - Door controller for use without reader

Technical Specification

Features:
  • Make: Vanderbilt
  • Model code: DC01
  • Controller Type: Standalone
  • Max No. of Doors per Controller: 1
  • Communication Type: RS485
Read more
Additional info:

The DC01 is designed to monitor and control one door in a SiPass Entro system. When it is connected to a door it continuously reports the status of that door (open or closed) to the system, which increases the level of security in the building.

Read more
Make Vanderbilt
Manufacturer Vanderbilt Industries
Model code DC01
Controller Type Standalone
Max No. of Doors per Controller 1
Communication Type RS485
Electrical Specifications Voltage: 8 ~ 40 V DC
Power Consumption: 0.24 W
Physical Specifications Dimensions mm: 120 x 80 x 40
Weight g: 160
Environmental Specifications Operating Temp oC: -35 ~ +50
Additional info

The DC01 is designed to monitor and control one door in a SiPass Entro system. When it is connected to a door it continuously reports the status of that door (open or closed) to the system, which increases the level of security in the building.
