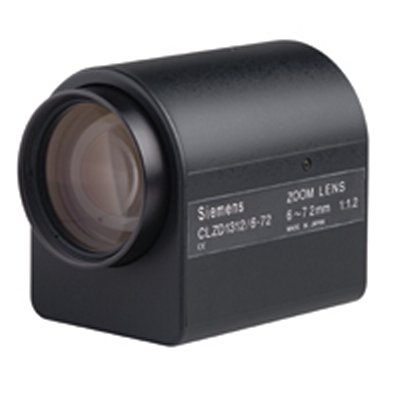

Vanderbilt CLZD1314/6-72 CCTV camera lens

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vanderbilt CLZD1314/6-72 CCTV camera lens

Features:

Make: Vanderbilt
Model code: CLZD1314/6-72
Zoom type: Motorised
Lens Format inches: 1/3 inch
Focal Length mm: 6 ~ 72 mm focal length

Additional info:

CS-mount direct-drive (DC-type) auto-iris lenses suitable for modern cameras with internal auto-iris drive circuits. These lenses are equipped with F360 neutral density spot-filters making them suitable for both indoor and outdoor applications. All lenses are supplied with the auto-iris plug pre-fitted.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	CCTV>CCTV camera lenses
Model code	CLZD1314/6-72
Zoom type	Motorised
Lens Format inches	1/3 inch
Focal Length mm	6 ~ 72 mm focal length
Iris Type	Auto Iris
Lens Mount	CS mount
F-Stop	1.2 F-stop
Direct Drive	Yes
Angle (Field) of View ^o	43.7 ~ 4
Minimum Object Distance m	1.5
Physical Specifications	Dimensions mm: 55 x 84 x 103
Environmental Specifications	Operating Temperature ^oC: -10 ~ 50
Varifocal	Yes
Additional info	CS-mount direct-drive (DC-type) auto-iris lenses suitable for modern cameras with internal auto-iris drive circuits. These lenses are equipped with F360 neutral density spot-filters making them suitable for both indoor and outdoor applications. All lenses are supplied with the auto-iris plug pre-fitted.
