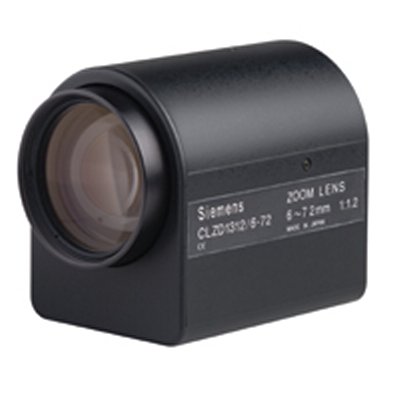

Vanderbilt CLZD1312/6-72 CCTV camera lens

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vanderbilt CLZD1312/6-72 CCTV camera lens

Features:

Make: Vanderbilt
Model code: CLZD1312/6-72
Zoom type: Motorised
Lens Format inches: 1/3 inch
Focal Length mm: 6 ~ 72 mm focal length

Additional info:

CS-mount motor zoom lens with zoom and focus drives, high-performance glass optics, galvanometric direct drive auto-iris mechanism and ND spot-filter. Supplied with fitted iris plug. Minimum object distance: 1.5 m. CLPD1312/6-72 model available with 5K Ohm zoom and focus feedback potentiometers for use as presets.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	CCTV>CCTV camera lenses
Model code	CLZD1312/6-72
Zoom type	Motorised
Lens Format inches	1/3 inch
Focal Length mm	6 ~ 72 mm focal length
Iris Type	Auto Iris
Lens Mount	CS mount
F-Stop	1.2 F-stop
Zoom Ratio	x12 zoom
Direct Drive	Yes
Angle (Field) of View ^o	43.7 ~ 4.0
Physical Specifications	Dimensions mm: 55(D) x 84.5(W) x 103(L) Weight g: 570
Environmental Specifications	Operating Temperature ^oC: 0 ~ 50
Varifocal	Yes
Additional info	CS-mount motor zoom lens with zoom and focus drives, high-performance glass optics, galvanometric direct drive auto-iris mechanism and ND spot-filter. Supplied with fitted iris plug. Minimum object distance: 1.5 m. CLPD1312/6-72 model available with 5K Ohm zoom and focus feedback potentiometers for use as presets.
