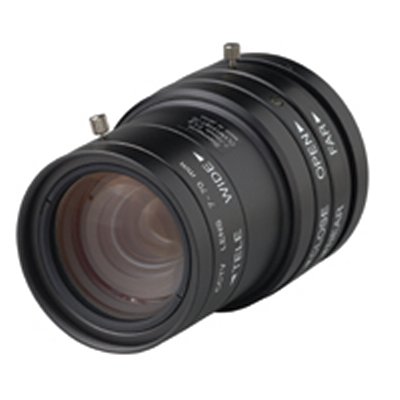

Vanderbilt CLVM1318/7-70 CCTV camera lens

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vanderbilt CLVM1318/7-70 CCTV camera lens

Features:

Make: Vanderbilt
Model code: CLVM1318/7-70
Lens Format inches: 1/3 inch
Focal Length mm: 7 ~ 70 mm focal length
Iris Type: Manual Iris

Additional info:

CS-mount varifocal lens with high-performance glass optics. Professional, metal bodied lenses with focal length and focus adjustments having screw-locks to ensure views remain as initially set. Metal thread ensures secure mounting to camera. Minimum object distance: 0.3-1.0 m.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	CCTV>CCTV camera lenses
Model code	CLVM1318/7-70
Lens Format inches	1/3 inch
Focal Length mm	7 ~ 70 mm focal length
Iris Type	Manual Iris
Lens Mount	CS mount
F-Stop	1.8 F-stop
Angle (Field) of View ^o	4.2 ~ 40.1
Filter Size mm	M46.0x0.75
Physical Specifications	Dimensions mm: 48(D) x 55(W) x 82.2(L) Weight g: 199.5
Environmental Specifications	Operating Temperature ^oC: 0 ~ 50
Varifocal	Yes
Additional info	CS-mount varifocal lens with high-performance glass optics. Professional, metal bodied lenses with focal length and focus adjustments having screw-locks to ensure views remain as initially set. Metal thread ensures secure mounting to camera. Minimum object distance: 0.3-1.0 m.
