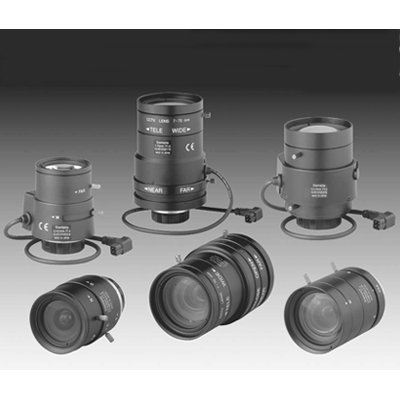

Siemens CLVM1314/2.5-10 CCTV camera lens with screw-lock focal length and focus adjustment

Technical Specification

Features:
  • Make: Vanderbilt
  • Model code: CLVM1314/2.5-10
  • Lens Format inches: 1/3
  • Focal Length mm: 2.5 ~ 10
  • Iris Type: Manual Iris
Read more
Make Vanderbilt
Manufacturer Vanderbilt Industries
Model code CLVM1314/2.5-10
Lens Format inches 1/3
Focal Length mm 2.5 ~ 10
Iris Type Manual Iris
Lens Mount CS
IR Corrected (Aspherical) Yes
F-Stop 1.4
Angle (Field) of View o 28.3 ~ 105.8
Minimum Object Distance m 0.3
Physical Specifications Dimensions mm: 42 x 48 x 60 x 4.5
Weight g: 80.8
Environmental Specifications Operating Temperature oC: -10 ~ +50
Varifocal Yes
