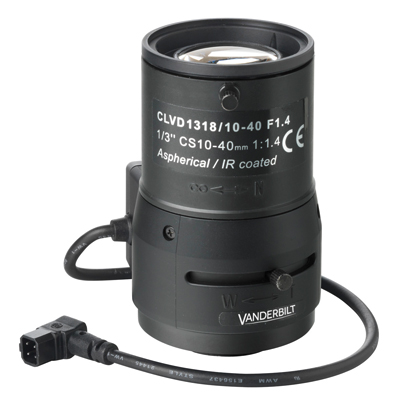

Vanderbilt CLVD1318/10-40 varifocal lens with high quality aspherical glass optics

Technical Specification

Features:
  • Make: Vanderbilt
  • Model code: CLVD1318/10-40
  • Lens Type: Varifocal
  • Lens Format inches: 1/3
  • Focal Length mm: 10 ~ 40
Read more
Additional info:

Auto-iris lenses supplied with pre-fitted plug.  Aspherical lenses ensure excellent image quality.  Suitable for use with day/night cameras through IR-coated lenses.  Quality slip-mount connection.  Special multiple layer coating.

Read more
Make Vanderbilt
Manufacturer Vanderbilt Industries
Model code CLVD1318/10-40
Lens Type Varifocal
Lens Format inches 1/3
Focal Length mm 10 ~ 40
Iris Type Direct drive
Lens Mount CS
F-Stop 1.4
IR Corrected (Aspherical) Yes
Direct Drive Yes
Angle (Field) of View o 7 ~ 27.5
Minimum Object Distance m 0.5
Physical Specifications Dimensions mm: 39 x 57 x 67
Weight g: 89
Electrical Specifications Voltage: 3.0V / 0.5V
Environmental Specifications Operating Temperature oC: -20 ~ +60 C (-4 ~ +140 F)
Varifocal Yes
Additional info

Auto-iris lenses supplied with pre-fitted plug.  Aspherical lenses ensure excellent image quality.  Suitable for use with day/night cameras through IR-coated lenses.  Quality slip-mount connection.  Special multiple layer coating.
