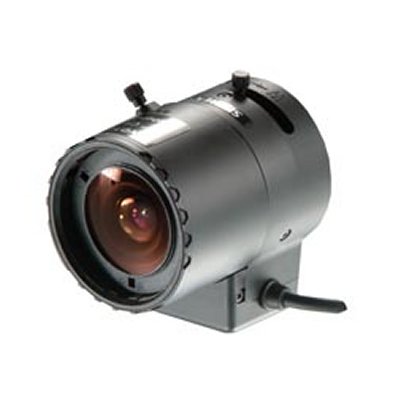

Vanderbilt CLVD1218/4-12 CCTV camera lens

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vanderbilt CLVD1218/4-12 CCTV camera lens

Features:

Make: Vanderbilt
Model code: CLVD1218/4-12
Lens Format inches: 1/2 inch
Focal Length mm: 4 ~ 12 mm focal length
Iris Type: Auto Iris

Additional info:

Manual focus, direct drive (DC-type) auto-iris lenses with standardized plug. Aspherical lenses ensure excellent image quality. Suitable for use with day/night cameras through IR-coated lenses. Quality slip-mount connection. Special multiple layer.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	CCTV>CCTV camera lenses
Model code	CLVD1218/4-12
Lens Format inches	1/2 inch
Focal Length mm	4 ~ 12 mm focal length
Iris Type	Auto Iris
Lens Mount	C mount
IR Corrected (Aspherical)	Yes
F-Stop	1.2 F-stop
Direct Drive	Yes
Angle (Field) of View ^o	31 ~ 94
Minimum Object Distance m	0.3
Physical Specifications	Dimensions mm: 40 x 38.6 x 50
Environmental Specifications	Operating Temperature ^oC: -10 ~ +50
Varifocal	Yes
Additional info	Manual focus, direct drive (DC-type) auto-iris lenses with standardized plug. Aspherical lenses ensure excellent image quality. Suitable for use with day/night cameras through IR-coated lenses. Quality slip-mount connection. Special multiple layer.
