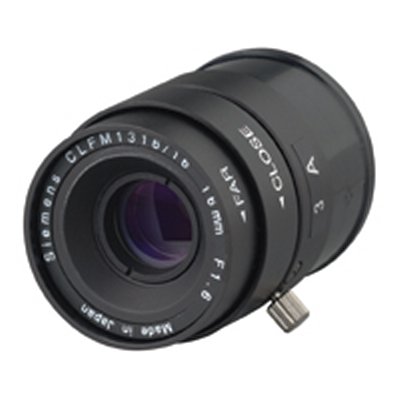

Vanderbilt CLFM1316/16 CCTV camera lens

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Vanderbilt
Model code: CLFM1316/16
Lens Format inches: 1/3 inch
Focal Length mm: 16.0 mm focal length
Iris Type: Manual Iris

Additional info:

CS-mount lens with high-performance glass optics. Professional, metal bodied lenses with screw locks to ensure images remain sharply focused. Metal thread ensures secure mounting to camera. Minimum object distance: 0.7 m.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	CCTV>CCTV camera lenses
Model code	CLFM1316/16
Lens Format inches	1/3 inch
Focal Length mm	16.0 mm focal length
Iris Type	Manual Iris
Lens Mount	CS mount
F-Stop	1.6 F-stop
Angle (Field) of View ^o	17.6
Physical Specifications	Dimensions mm: 28 (Dia) x 26.8 Weight g: 39.5
Environmental Specifications	Operating Temperature ^oC: -10 ~ +50
Additional info	CS-mount lens with high-performance glass optics. Professional, metal bodied lenses with screw locks to ensure images remain sharply focused. Metal thread ensures secure mounting to camera. Minimum object distance: 0.7 m.
