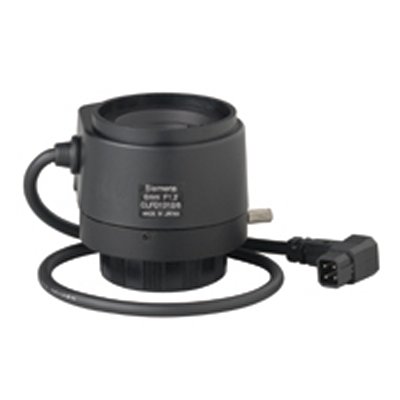

Vanderbilt CLFD1312/6

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Vanderbilt
Model code: CLFD1312/6
Lens Format inches: 1/3
Focal Length mm: 6.0
Iris Type: Auto Iris

Additional info:

CS-mount lens with high-performance glass optics, galvanometric direct drive auto-iris mechanism and ND spot-filter - ideal for outdoor applications. Screw lock ensure images remain sharply focused. Metal thread ensures secure mounting to camera. Supplied with fitted plug. Minimum object distance: 0.3 m.

Go to Replacement product Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Model code	CLFD1312/6
Lens Format inches	1/3
Focal Length mm	6.0
Iris Type	Auto Iris
Lens Mount	CS
F-Stop	1.2
Direct Drive	Yes
Angle (Field) of View ^o	48.1
Physical Specifications	Dimensions mm: 32(D) x 43.9(W) x 32.3(L) Weight g: 49.8
Additional info	CS-mount lens with high-performance glass optics, galvanometric direct drive auto-iris mechanism and ND spot-filter - ideal for outdoor applications. Screw lock ensure images remain sharply focused. Metal thread ensures secure mounting to camera. Supplied with fitted plug. Minimum object distance: 0.3 m.
