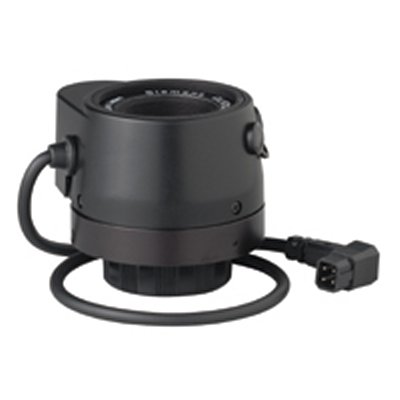

Vanderbilt CLFD1214/12 CCTV camera lens

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Vanderbilt
Model code: CLFD1214/12
Lens Format inches: 1/2 inch
Focal Length mm: 12.0 mm focal length
Iris Type: Auto Iris

Additional info:

CS-mount lens with high-performance glass optics, galvanometric direct drive auto-iris mechanism and ND spot-filter - ideal for outdoor applications. Screw lock ensure images remain sharply focused. Metal thread ensures secure mounting to camera. Supplied with fitted plug. Minimum object distance: 0.2 m.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	CCTV>CCTV camera lenses
Model code	CLFD1214/12
Lens Format inches	1/2 inch
Focal Length mm	12.0 mm focal length
Iris Type	Auto Iris
Lens Mount	CS mount
F-Stop	1.4 F-stop
Direct Drive	Yes
Angle (Field) of View ^o	29.7
Filter Size mm	M30.5x0.5
Physical Specifications	Dimensions mm: 37(D) x 52(W) x 32(L) Weight g: 82.5
Additional info	CS-mount lens with high-performance glass optics, galvanometric direct drive auto-iris mechanism and ND spot-filter - ideal for outdoor applications. Screw lock ensure images remain sharply focused. Metal thread ensures secure mounting to camera. Supplied with fitted plug. Minimum object distance: 0.2 m.
