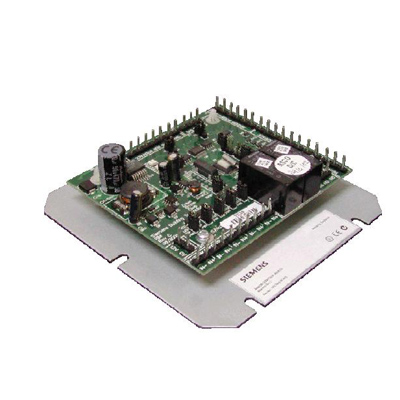

Vanderbilt ADD51xx Access control controller

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vanderbilt ADD51xx Access control controller

Features:

Make: Vanderbilt
Model code: ADD51xx
Communication Type: RS-485
Universal / Wiegand Reader Interface: Yes
Voltage: 12 ~ 32 VDC

Additional info:

The DRI provides a local interface between an Advanced Central Controller (ACC) and up to 2 card readers installed as entry and exit readers for a single door. This allows the DRI to receive information regarding the identity of a cardholder requesting entry or exit at a locked door and then send the identification data to the ACC for processing. In addition, the DRI has the intelligence to report the status of a door and unlock or lock the door as re-quired.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	Access Control>Access control controllers
Model code	ADD51xx
Communication Type	RS-485
Universal / Wiegand Reader Interface	Yes
Electrical Specifications	Voltage: 12 ~ 32 VDC Power Consumption: 25 W
Physical Specifications	Dimensions mm: 125 x 125 x 34
Environmental Specifications	Operating Temp ^oC: 0 ~ 50 Operating Humidity %: 10 ~ 90
Accessories	Door Interface
Additional info	The DRI provides a local interface between an Advanced Central Controller (ACC) and up to 2 card readers installed as entry and exit readers for a single door. This allows the DRI to receive information regarding the identity of a cardholder requesting entry or exit at a locked door and then send the identification data to the ACC for processing. In addition, the DRI has the intelligence to report the status of a door and unlock or lock the door as re-quired.
