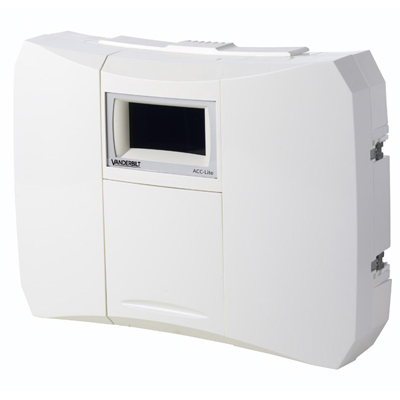

Vanderbilt AC5200 - ACC-Lite

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Vanderbilt
Model code: AC5200
Series: Entro Series
Controller Type: Networkable
Max No. of Doors per Controller: 8

Additional info:

The AC5200 is a smaller version of Vanderbilt’ high-performance IP-based advanced central controller models (AC5100 and AC5102). It can manage up to 40‚000 cardholders.The ACC-Lite has been specially designed to provide a low-cost alternative for smaller or branch installations. It provides one field level network (FLN) channel which is capable of hosting up to 8 doors for access control, monitoring input devices or controlling output devices. Firmware can be easily downloaded or updated via TCP/IP connection without having to visit the controller cabinets. Communication with the host system occurs via a two-port Ethernet switch which provides 10/100Mb LAN connection. This makes it possible to “daisy chain” controllers. TCP/IP communication ensures the fastest possible transaction times between the host system and the field panels. In case of power failure the database on the ACC-Lite is protected in battery-backed memory. This maintains the integrity of the access control data and ensures that the ACC-Lite is back online as soon as power is restored.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	Access Control>Access control controllers
Model code	AC5200
Controller Type	Networkable
Max No. of Doors per Controller	8
No of Cardholders	40,000
Offline Capabilities	Yes
Networkable	Yes
Communication Type	RS232, RS485, TCP/IP
Electrical Specifications	Voltage: 8 ~ 40 V DC Power Consumption: 100 mA
Physical Specifications	Dimensions mm: 248 x 182 x 66 Weight g: 600
Environmental Specifications	Operating Temp ^oC: 0 ~ 50
Additional info	The AC5200 is a smaller version of Vanderbilt’ high-performance IP-based advanced central controller models (AC5100 and AC5102). It can manage up to 40‚000 cardholders. The ACC-Lite has been specially designed to provide a low-cost alternative for smaller or branch installations. It provides one field level network (FLN) channel which is capable of hosting up to 8 doors for access control, monitoring input devices or controlling output devices. Firmware can be easily downloaded or updated via TCP/IP connection without having to visit the controller cabinets. Communication with the host system occurs via a two-port Ethernet switch which provides 10/100Mb LAN connection. This makes it possible to “daisy chain” controllers. TCP/IP communication ensures the fastest possible transaction times between the host system and the field panels. In case of power failure the database on the ACC-Lite is protected in battery-backed memory. This maintains the integrity of the access control data and ensures that the ACC-Lite is back online as soon as power is restored.
