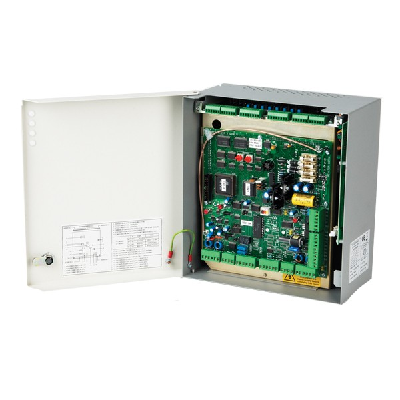

Siemens 4010 SNPi - Compact Controller (Cotag) incl. IP Module

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Siemens 4010 SNPi - Compact Controller (Cotag) incl. IP Module

Features:

Make: Vanderbilt
Model code: 4010-SNPi
Series: Granta Compact Series
Controller Type: Networkable
Max No. of Doors per Controller: 4

Additional info:

Controller for two 3rd party Readers (Wiegand/Clock & Data), includes 3 amp PSU. Can be expanded to support four Readers by installing a 4422 Dual Reader Module and an 814 Reader Module Cable Assembly. May be used on line to any Granta system, as a remote site controller or as a slave controller within a small Primo System.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	Access Control>Access control controllers
Model code	4010-SNPi
Controller Type	Networkable
Max No. of Doors per Controller	4
No of Cardholders	13,000
Networkable	Yes
Communication Type	RS-485 / TCP / IP
Universal / Wiegand Reader Interface	Yes
Electrical Specifications	Voltage: 85 ~ 264 V AC
Physical Specifications	Dimensions mm: 260 x 280 x 140 Weight g: 5 kg
Environmental Specifications	Operating Temp ^oC: -10 ~ +40
Additional info	Controller for two 3rd party Readers (Wiegand/Clock & Data), includes 3 amp PSU. Can be expanded to support four Readers by installing a 4422 Dual Reader Module and an 814 Reader Module Cable Assembly. May be used on line to any Granta system, as a remote site controller or as a slave controller within a small Primo System.
