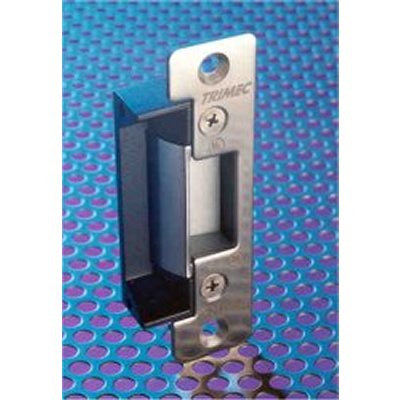

Trimec High Security ES110 ANSI Strike

Product Profile

This High Security Strike now comes with polished stainless steel faceplates as standard.   This improvement ensures longer life and is provided at no extra charge.  ANSI is sometimes thought to be an indication of quality and security.  This is not so as the ANSI specification only covers the dimensions of the strike faceplate and extension lip.  This is very important to consider as low security strikes that are easy to manipulate and bypass are now available in ANSI format.  The TRIMEC ES110 Security Strike has a polished stainless steel jaw that accepts a 19.05mm latch and has a holding force of 1,350 kg.  The ES110 has UL1034 approval (tested to 1,000,000 cycles) and is guaranteed for 3 years.  Additionally, IP56 weather resistant models, extension lips and rebate plates are available.


Read more

Technical Specification

Make Trimec
Manufacturer ASSA ABLOY
Model code TS111AS
Series ES110 Series
Electric Release Type Mortice Release
Mount Type Mortice Mount mount
Fail-Open/ Fail-Secure Fail-Open
Monitoring Status Unmonitored
Door Open Type Inward / Outward door open type
Holding Force kN 1350 kN
Material Stainless steel
Door Type Exterior / Interior
Door Material Aluminium
Lip Width mm 15 and 50 mm
Bolt Throw mm 19.05
Environmental Specifications Protection: Weather Resistant
Physical Specifications Dimensions mm: 124 x 32 x 35
Additional info Accepts 19.05 latch as standard. Various accessories available.
Download PDF version Download PDF version
