VIVOTEK Network cameras

Real-time H.265, H.264 and MJPEG compression (Triple Codec) 1080p HD CMOS Sensor 60 fps @ 1080p Full HD Removable IR-cut Filter for day & night function WDR Pro for unparalleled visibility in high contrast environments Weather-proof IP66-rated, vandal-proof IK10 and NEMA 4X-rated housing Audio detection for instant alerts Auto tracking for moving objects Smart Stream II to optimise bandwidth efficiency 3D privacy masks for additional protection Built-in SD/SDHC/SDXC card slot for on-board storage

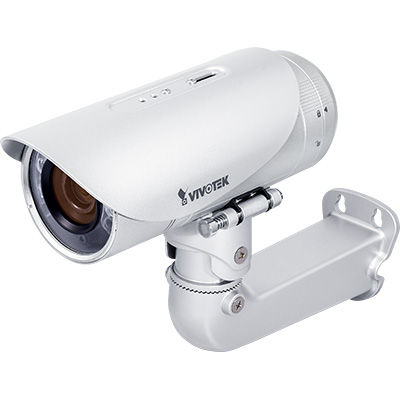

VIVOTEK IP8365EH is a professional outdoor bullet network camera offering 30 fps at  2-Megapixel resolution. It provides improved visibility in the extremely dark & light environment.  IP8365EH adopts a Smart IR technology which prevents overexposure and provides noise reduction to adjust the IR lighting intensity instantaneously based on the changes of light in the ambient environment.

VIVOTEK IP8355EH is a professional outdoor bullet network camera offering 30 fps at 1.3-megapixel. Featuring Wide Dynamic Range Technology WDR Pro II,it provides extreme visibility in extremely dark & light environments with 4-shutter capture method. Additionally, as a professional day/night camera, IP8355EH adopts SmartIR technology which prevents overexposure and provides noise reductionto adjust IR lighting intensity instantaneously based on the changes of light in the ambient environment.

*RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1x.

Vivtoek SD8364E is part of the SUPREME series product line offering 1080p full HD resolution with superb image quality. It features WDR Pro technology and can also cope with challenging lighting conditions as well as generate image quality close the capabilities of the human eye.

H.265 Compression Technology 5-Megapixel CMOS Sensor 30 fps @ 1920x1920 47 mm Fisheye Lens for 180° Panoramic View and 360° Surround View Removable IR-cut Filter for Day & Night Function WDR Pro for Unparalleled Visibility in High Contrast Environments Smart Stream II to Optimize Bandwidth Efficiency EN50155 Compliance for Professional Mobile Surveillance (FE9381-EHV) Vandal-proof IK10-rated and Weather-proof IP66-rated Housing (FE9381-EHV) ePTZ for Data Efficiency Built-in 802.3af Compliant PoE Support Client Side Dewarping Pixel Counter for Image Clarity Measurement

The SD9364-EH is the latest professional speed dome camera from VIVOTEK, specifically designed to enhance low light surveillance in large coverage areas. Latest IR & compression technology Equipped with 250M IR illuminators and a 30x optical zoom lens, the SD9364-EH provides a superb low light image in the most challenging situations. The SD9364-EH also adopts VIVOTEK's latest IR technology, VAIR (Vari-Angle IR). VIVOTEK's VAIR provides smooth vari-angle adjustment of the IR illuminators, allowing broad coverage FOV and highly uniform IR intensity while avoiding hot-spots traditionally associated with IR illumination. The SD9364-EH utilises H.265 compression technology. When combined with VIVOTEK's Smart Stream II technology, users can obtain bandwidth savings of up to 80% compared to traditional H.264 (depending on the scene being monitored). By combining 1080p full HD resolution with H.265, IR illuminators, VAIR, WDR, and 30x optical zoom, the SD9364-EH is able to capture fine details at top-notch quality, 24 hours a day, 7 days a week. High-level precision for wide open spaces VIVOTEK further strengthened the camera performance with an IP66- and NEMA 4X-rated housing to protect the camera against rain, dust, and corrosion. The SD9364-EH has a wide operating temperature range from -50°C to 55°C, ensuring continuous operation under the most extreme weather conditions and hazardous environments. This makes the SD9364-EH ideally suited to monitor wide open spaces such as ports, highways, cities, and parking lots where high-level precision is required. As with all VIVOTEK true day/night cameras, the SD9364-EH features a removable IR-cut filter, maintaining clear images 24 hours a day. Audio detection is included by recognising changes in ambient noise. The SD9364-EH also includes a SD/SDHC/SDXC card slot and supports up to 60 fps in 1080P full HD. For the most demanding outdoor surveillance application, there is nothing that compares to the VIVOTEK SD9364-EH.

VIVOTEK FD8355EHV is a professional outdoor network dome camera offering 30 fps. Some of its other features include motorised, P-iris lens and DC-iris and Smart Focus System for remote and precise focus adjustment. It also has built-in IR illuminators effective up to 30 meters.

VIVOTEK FD8137H is a 1 megapixel fixed dome network camera specifically designed for indoor security applications. The camera has a removable IR-cut filter and IR illuminators effective up to 15 meters. It also has supports ONVIF standard to simply integration and enhance interoperability.

VIVOTEK's IB8382-ET is a professional outdoor bullet network camera in VIVTOTEK's 5MP Lite series which offer up to 15 fps at 5-Megapixel. Equipped with a new high resolution image sensor, different from other 5MP cameras, the IB8382-ET provides sharper image quality and finer detail. And with powerful 3D Noise Reduction technology and Smart Stream technology the IB8382-ET can also optimise resolution for a desired object or area to maximise efficiency of bandwidth usage.

Vivotek SF8174V is a fisheye fixed dome network camera with 5 megapixel resolutoin sensor. It features removable IR-cut filters, maintaining clear images 24 hours a day. In addition, the IP-66 rated housing is designed to help the camera body withstand rain and dust.

2-Megapixel CMOS Sensor 30 fps @ 1920x1080 Removable IR-cut filter for day & night function Built-in IR Illuminators, effective up to 30 meters Smart IR technology to avoid overexposure WDR for unparalleled visibility in extremely bright and dark environments Supreme Night Visibility (SNV) for low light conditions 3D noise reduction Video rotation for corridor view Weather-proof IP66 and vandal-proof IK10-rated housing

2-Megapixel CMOS Sensor 30 fps @ 1920x1080 Removable IR-cut filter for day & night function Built-in IR Illuminators, effective up to 30 meters Smart IR technology to avoid overexposure WDR for unparalleled visibility in extremely bright and dark environments Supreme Night Visibility (SNV) for low light conditions 3D Noise Reduction Video rotation for corridor view Weather-proof IP66 and vandal-proof IK10-rated housing

4-Megapixel CMOS Sensor 30 fps @ 2688x1520 Real-time H.264, MJPEG compression (Dual Codec) Removable IR-cut filter for day & night function Built-in IR Illuminators, effective up to 30 Meters Smart IR technology to avoid overexposure WDR Pro for unparalleled visibility in extremely bright and dark environments Smart Stream II to optimise bandwidth efficiency 3D noise reduction Weather-proof IP66-rated and vandal-proof IK10-rated housing Built-in 802.3af Compliant PoE Built-in MicroSD/SDHC/SDXC card slot for on-board storage Supports ONVIF standard to simplify integration and enhance interoperability

2-Megapixel CMOS Sensor 30 fps @ 1920x1080 Real-time H.264, MJPEG Compression (Dual Codec) Removable IR-cut Filter for Day & Night Function Built-in IR Illuminators, Effective up to 30 Meters Built-in 802.3af Compliant PoE Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage Supports ONVIF Standard to Simplify Integration and Enhance Interoperability Weather-proof IP66-rated and Vandal-proof IK10-rated Housing Smart Stream II to Optimise Bandwidth Efficiency 3D Noise Reduction Smart IR Technology to Avoid Overexposure SNV (Supreme Night Visibility)

VIVOTEK’s CD8371-HNTV is a vandal-proof corner dome network camera specifically designed for prisons and correctional facilities. With up to 20 fps at 3-Megapixel resolution, 940nm IR illuminators, two-way audio, and vari-focal lens, the CD8371-HNTV is the most feature-rich prison cell surveillance camera available today. It has an anti-ligature design to limit the possibilities of self-inflicted harm or suicide, a required feature for environments such as prisons, holding cells, psychiatric wards, mental hospitals, and correctional institutions. Covering wide areas with the corner dome Alongside its anti-ligature design, the CD8371-HNTV is designed to cover a wide area. Devised to be installed in the upper corner of a cell, it has both a wide angle horizontal FOV (up to 108°) and vertical FOV (up to 79°) enabling full coverage of a rectangular cell, as well as having a 15° vertical tilt to enable vertical view adjustments where needed. WDR Pro is included, enabling better image quality where variable lighting is a concern, as well as SNV technology to produce high-quality full-colour surveillance under low-light conditions. These combined features, along with a built-in microphone, enable correctional officers, mental health evaluators, and prison guards to monitor all the activities of those under their supervision. The CD8371-HNTV also supports the industry-standard H.264 compression technology, reducing file sizes and conserving network bandwidth. It also is ONVIF compliant, enabling integration with any existing Video Management Software or VIVOTEK's own VAST Central Management Software.

2-Megapixel CMOS Sensor 30 fps @ 1920x1080 Real-time H.264, MJPEG Compression (Dual Codec) SNV (Supreme Night Visibility) for Low Light Conditions Smart Stream II to Optimize Bandwidth Efficiency WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments 3D Noise Reduction Built-in IEEE 802.3af Compliant PoE Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage Defog Compact and Stylish Design Easy Installation

H.265 compression technology 1080P Full HD CMOS Sensor 60 fps @ 1920x1080 20x optical zoom Removable IR-cut filter for day & night function WDR Pro, a true WDR, for unparalleled visibility in high contrast environments Smart Stream II to optimise bandwidth efficiency Weather-proof IP68-rated, vandal-proof IK10-rated and NEMA4X housing Audio detection for instant alerts Auto tracking for moving objects Built-in MicroSD/SDHC/SDXC card slot for on-board storage

H.265 compression technology •1080P Full HD CMOS Sensor 60 fps @ 1920x1080 30x optical zoom Removable IR-cut filter for day & night function WDR Pro for unparalleled visibility in high contrast environments Smart Stream II to optimise bandwidth efficiency Weather-proof IP68-rated, vandal-proof IK10-rated and NEMA4X housing Audio detection for instant alerts Auto tracking for moving objects Built-in MicroSD/SDHC/SDXC card slot for on-board storage

VIVOTEK IP8165HP is a professional box network camera offering 30 fps @ 2-Megapixel resolution with superb image quality. Featuring the improved Wide Dynamic Range Technology WDR Pro, it provides extreme visibility in extremely dark & light environments with 2-shutter capture method. Combined with 3D Noise Reduction Technology, users can identify an increased level of image detail in extremely bright as well as dark environments without occupying or wasting unreasonably high bandwidth. To provide top-notch image quality, IP8165HP also comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality. Furthermore, for installers, properly adjusting the focus of a megapixel network camera can be difficult due to the level of image detail. Therefore, IP8165HP is also designed with VIVOTEK’s ABF (Auto Back Focus) System for installer to adjust focus more precisely. Features: 2-Megapixel CMOS Sensor 30 fps @ 1920x1080 Motorised, P-iris Lens 3D Noise Reduction for Low-light Conditions WDR Pro (100dB) to Provide Extreme Visibility in Extremely Bright or Dark Environments ABF Design to Assist for Precise Focus Adjustment EIS (Electronic Image Stabilisation) to Control Image Stability Two-way Audio

VIVOTEK’s IP816A-LPC (40mm) is a professional box network cameras offering perfect solutions for License Plate Capture with a headlight filter design and specialised firmware for traffic monitoring. Featuring dedicated LPC firmware and mutually compatible lens, the IP816A-LPC (40mm) is perfect for street based applications. With a suitable selection of external IR LEDs, both cameras will be ideal for 24/7 license plate capture and will provide high-detail polished images for reliable license plate recognition.

Vivotek IB8354-C is a 1.3MP colour monochrome bullet network camera equipped with a 1.3MP sensor enabling viewing resolution of 1280x1024 at a smooth 30 fps, is a best-in-class, bullet-style network camera designed for diverse outdoor applications. The camera features a removable IR-cut filter as well as improved IR illuminators effective up to 20M for superior image quality around the clock.

H.265 compression technology 1/1.8" Progressive CMOS Sensor 30 fps @ 2560x1920; 60 fps @ 1920x1080 Smart Stream II to optimise bandwidth efficiency Built-in IR Illuminators, effective up to 30 meters Remote focus for easy focus adjustments WDR Pro for unparalleled visibility in high contrast environments Weather-proof IP66-rated and vandal-proof IK10-rated metal housing Extreme weather support with PoE Supreme Night Visibility (SNV) for low light conditions Video rotation for corridor view P-iris lens DIS (Digital Image Stabilisation)

* IGMP,SMTP, FTP, DHCP, NTP, DNS, DDNS and PPPoE.

H.265 compression technology 1080P Full HD CMOS Sensor 30 fps @ 1920x1080 10x Optical Zoom Removable IR-cut filter for day & night function Smart Stream II to optimise bandwidth efficiency WDR Pro for unparalleled visibility in high contrast environments Electronic Image Stabilisation (EIS) to control image stability Built-in 802.3at Compliant PoE Auto tracking for moving objects

VIVOTEK FD8137HV is 1 megapixel fixed dome network camera specifically designed for indoor/outdoor security applications. The WDR Pro Technology allows the camera to capture both dark and bright parts of an image and combines the differences to generate a highly realistic image representative of the original scene, enabling it to provide video quality close to the capabilities of the human eye.

VIVOTEK's IB8382-EF3 is a professional outdoor bullet network camera in VIVTOTEK's 5MP Lite series which offer up to 15 fps at 5-Megapixel. Equipped with a new high resolution image sensor, different from other 5MP cameras, the IB8382-EF3 provides sharper image quality and finer detail. And with powerful 3D Noise Reduction technology and Smart Stream technology the IB8382-EF3 can also optimise resolution for a desired object or area to maximise efficiency of bandwidth usage.

VIVOTEK, a leading provider of H.265A pioneer in the use of H.265 technology for surveillance, VIVOTEK is proud to launch the new H.265 solutions, available in from 2-Megapixel to 5-Megapixel models and in a range of form factors to suit any application. Employing H.265 technology enables these cameras to provide higher and more efficient image compression rates than previous H.264 systems while maintaining the high image quality. Additionally, VIVOTEK’s NVRs (network video recorders) and professional VMS (video management software), VAST, provide complete H.265 solutions for professional surveillance operations.VIVOTEK's Smart Stream II: Make your bandwidth more efficientIn addition to the deployment of H.265 hardware, VIVOTEK also releases the sophisticated Smart Stream II, the next generation of video compression technology. Utilizing VIVOTEK’s Smart Stream II, cameras are able to optimise quality for desired regions and adjust encoding automatically to maximise bandwidth usage efficiency. Customers will benefit from significant reduction in network bandwidth and storage requirements. Combining H.265 and VIVOTEK's Smart Stream II, the H.265 solutions can reduce both bandwidth and storage consumption by up to 80% more than cameras using H.264.As well as these advanced network cameras, VIVOTEK also introduces H.265 compatible NVRs and video management software, VAST to shorten installation time and cost. VIVOTEK's H.265 integrated solution is perfect for a wide range of environments, including indoors, outdoors and from small to medium scale applications.
