ONVIF conformance and H.264 compression: the eneo megapixel NXC and NXD Series

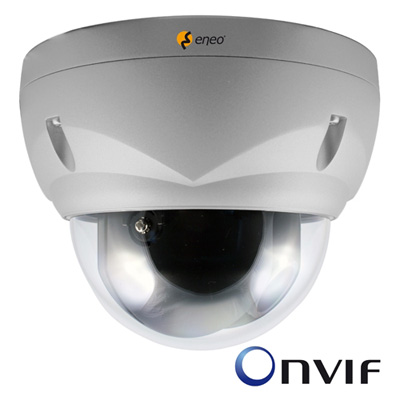

Megapixel, H.264 compression, ONVIF conformance - these three terms by themselves show that the latest eneo network cameras are state-of-the-art. And this is with a cost-effectivness unique in the sector. But cameras in the NXC and NXD Series have far more to offer. Let's look at this point-by-point: The NXC covers network cameras, the NXD Series fixed domes. Both series have a choice of four versions: with one or two megapixels, and each with and without a removable IR cut filter. In addition to MJPEG, all models offer the efficient H.264 compression that gives high picture quality with low bandwidth requirements. The resolution, frame rate and bit rate can be individually configured for up to four multiple video streams.ROI (Region of Interest): relevant regions in close viewThe ROI (Region of Interest) function allows particularly important regions to be designated. The corresponding signals are then transmitted at a high frame rate, resolution, bit rate and picture quality in the primary stream. Region sizes are individually configurable. Therefore, for instance, a camera can capture the complete point of sale in a supermarket and transmit it by MJPEG stream. Simultaneously though, the cash register itself can be defined as a region of interest so that the transactions made there are displayed on a different monitor in higher signal quality over a H.264 stream.Easy and flexible installationNXD Series fixed domes can be wall as well as ceiling mounted and their vandalism-proof housing with IP66 protection rating makes them the ideal choice for outside areas. They come with an integral varifocal lens with a focal length of 3-9mm and a light sensitivity of 1.3 Lux at F1.2 (measured with a 50% video signal). The two series offer recording security with optional backup on SD card. This local recording is automatically activated when a movement is detected or an alarm triggered.
