Dahua Technology Security camera systems

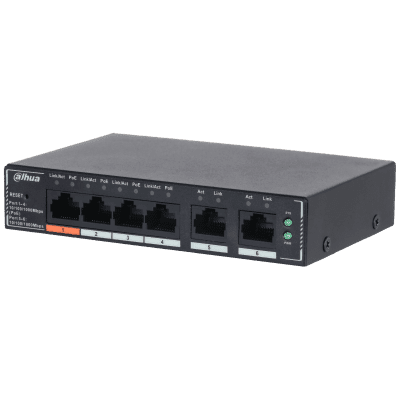

4 × RJ45 Gigabit PoE ports, 2 × RJ45 Gigabit ports. 60 W total PoE budget, 802.3af/at on all PoE ports, additional Hi-PoE on orange port. Wide operating temperature ranging from –10 °C to 55 °C. Supports VLAN, STP, RSTP and link aggregation. WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network. Easy config to auto detect and set up network.

Easy to install, and is plug and play. Meets the requirements of IEEE802.3af and IEEE802.3at standards. Performs long-distance transmission. With its solid full metal design, the device has great heat dissipation and no fan. Wide operating temperature ranging from –10 °C to +55 °C. Supports wall mount and desktop mount.

Layer 2 network management PoE switch. Supports web, and network management software based on SNMP. Network redundancy: STP/RSTP. Supports PoE power consumption management, PoE power off management. Supports IEEE802.3af, IEEE802.3at. Port 1 and port 2 support IEEE802.3bt, and are compatible with Hi-PoE. Supports PoE watchdog. Supports 250 m long-distance transmission mode

Layer 2 network management PoE switch. IEEE802.3af, IEEE802.3at standard. Port 1 supports IEEE802.3bt, and is compatible with Hi-PoE. PoE watchdog. 250 m long-distance transmission mode. Network redundancy: STP/RSTP. Static link aggregation and LACP. EMC high protection design. Desktop and wall-mounted installation.

100–240VAC wide voltage range design. High performance switch chip, no lag video. Supports IEEE802.3af, IEEE802.3at , Hi-PoE. Supports Intelligent PoE. Supports 250 m long-distance transmission mode, Supports PoE Watchdog. Supports Port isolation mode. Supports QoS mode of VIP ports.

16-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder. 8-channel AcuPick for analogue channels which improves the efficiency of target retrieval. 8-channel perimeter protection for analogue channels which supports tripwire and intrusion detection powered by AI. 4-channel face recognition for analogue channels which supports face comparison. 16-channel SMD Plus for analogue channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles. 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos. Supports HDCVI, AHD, TVI, CVBS and IP video input. Supports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps. Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes. Smart H.265+ and H.265 dual-stream video compression.

Layer two commercial switch Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards MAC auto learning, aging, MAC address capacity is 8K Supports MDI/MDIX self-adaptation RJ45 port supports 10/100/1000 Mbps self-adaptation Supports IEEE802.3af and IEEE803.3at power supply standards Adopts metal enclosure Supports Hi-PoE 60W Supports DC 48-57V power supply

Intelligent PoE Hi-PoE 60W (orange port) 8-pin assignment PoE power supply Long distance PoE PoE watchdog Wide working temperature

All-gigabit port design (10 gigabit uplink port). Meets the requirements of IEEE 802.3af and IEEE 802.3at power supply standards. The red port additionally complies with Hi-PoE/IEEE 802.3bt standard. 250 meter long distance PoE. PoE watchdog real-time monitors camera statues and automatically reboots faulty network cameras. Supports STP, RSTP and ERPS. IEEE802.1Q-based VLAN configuration. Static link aggregation and dynamic link aggregation. Easy to manage the device through the webpage. EMC compliant, the device is lightning proof. Desktop mount and rack mount.

All-gigabit port design (10 gigabit uplink port). Supports STP, RSTP and ERPS. IEEE802.1Q-based VLAN configuration. Static link aggregation and static LACP. Easy to manage the device through the webpage. EMC compliant, the device is lightning proof. Desktop mount and rack mount.

Easy to install, and is plug and play. Meets the requirements of IEEE802.3af and IEEE802.3at standards. Performs long-distance transmission. With its solid full metal design, the device has great heat dissipation and no fan. Wide operating temperature ranging from –10 °C to +55 °C. Supports wall mount and desktop mount.

Intelligent PoE. Red port supports 90W IEEE802.3bt. Web management with friendly interface and easy operation. 250 m long distance PoE transmission. PoE watchdog. Large-capacity data cache (4Mbit) for real-time transmission and smooth video. All gigabit port design.

2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval. 1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time. 8-channel SMD Plus for analog channels or 16-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles. 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI. 2-channel face recognition for analog channels which supports face comparison. 8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos. Supports HDCVI, AHD, TVI, CVBS and IP video input. Supports up to 16-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps. Smart H.265+ and H.265 dual-stream video compression.

8-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder. 8-channel AcuPick for analog channels which improves the efficiency of target retrieval. 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI. 4-channel face recognition for analog channels which supports face comparison. 8-channel SMD Plus for analog channels or 16-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles. 8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos. Supports HDCVI, AHD, TVI, CVBS and IP video input. Supports up to 16-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps. Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes. Smart H.265+ and H.265 dual-stream video compression.

16-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder. 8-channel AcuPick for analog channels which improves the efficiency of target retrieval. 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI. 4-channel face recognition for analog channels which supports face comparison. 16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles. 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos. Supports HDCVI, AHD, TVI, CVBS and IP video input. Supports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps. Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes. Smart H.265+ and H.265 dual-stream video compression.

16-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder. 8-channel AcuPick for analog channels which improves the efficiency of target retrieval. 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI. 4-channel face recognition for analog channels which supports face comparison. 16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles. 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos. Supports HDCVI, AHD, TVI, CVBS and IP video input. Supports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps. Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes.

8-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder. 8-channel AcuPick for analog channels which improves the efficiency of target retrieval. 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI. 4-channel face recognition for analog channels which supports face comparison. 8-channel SMD Plus for analog channels or 16-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles. 8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos. Supports HDCVI, AHD, TVI, CVBS and IP video input. Supports up to 16-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps. Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes. Smart H.265+ and H.265 dual-stream video compression.

32-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder. 12-channel AcuPick for analog channels which improves the efficiency of target retrieval. 12-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI. 6-channel face recognition for analog channels which supports face comparison. 32-channel SMD Plus for analog channels or 64-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles. 32-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos. Supports HDCVI, AHD, TVI, CVBS and IP video input. Supports up to 64-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 256 Mbps.

 4 × 100 Mbps Ethernet ports, and 3 × 1000 Mbps uplink optical ports. Meets IEEE 802.3af and IEEE802.3at power supply standards. The red port meets Hi-PoE/IEEE 802.3bt standard. High lighting and surge protection. IEEE802.1Q-based VLAN configuration. 250 m long-distance PoE with a transmission speed of 10 Mbps. PoE watchdog. Fanless design. Desktop mount and DIN-rail mount.

6-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency. 1-channel Privacy Protection for analog channels which supports masking and restoring human faces that are detected in real time. 16-channel SMD Plus for analog channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles. 12-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI. 6-channel face recognition for analog channels which supports face comparison. 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos. Supports HDCVI, AHD, TVI, CVBS and IP video input. Supports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps. Smart H.265+ and Smart H.265 dual-stream video compression.

Layer 2 network management PoE switch. Supports web, and network management software based on SNMP. Network redundancy: STP/RSTP. Supports PoE power consumption management, PoE power off management. Supports IEEE802.3af, IEEE802.3at. Port 1 and port 2 support IEEE802.3bt, and are compatible with Hi-PoE. Supports PoE watchdog. Supports 250 m long-distance transmission mode.

4-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder. 4-channel AcuPick for analog channels which improves the efficiency of target retrieval. 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI. 2-channel face recognition for analog channels which supports face comparison. 4-channel SMD Plus for analog channels or 6-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles. 4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos. Supports HDCVI, AHD, TVI, CVBS and IP video input. Supports up to 6-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 32 Mbps. Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes. Smart H.265+ and H.265 dual-stream video compression.

Dahua Technology DH-PFS3102-1T is a 1 port Ethernet switch that features: 2-layer industrial level switch Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards 100M/1000M self-adaptive SFP fiber Industrial wide temperature design

Layer two commercial switch Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards MAC auto learning, aging, MAC address capacity is 8K Supports MDI/MDIX self-adaptation RJ45 port supports 10/100/1000 Mbps self-adaptation Supports IEEE802.3af and IEEE803.3at power supply standards Adopts metal enclosure Supports Hi-PoE 60W Supports DC 48-57V power supply

Easy to install, and is plug and play. Meets the requirements of IEEE802.3af and IEEE802.3at standards. Performs long-distance transmission. With its solid full metal design, the device has great heat dissipation and no fan. Wide operating temperature ranging from –10 °C to +55 °C. Supports wall mount and desktop mount.

Easy to install, and is plug and play. Meets the requirements of IEEE802.3af and IEEE802.3at standards. Performs long-distance transmission. With its solid full metal design, the device has great heat dissipation and no fan. Wide operating temperature ranging from –10 °C to +55 °C. Supports wall mount and desktop mount.

4-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder. 4-channel AcuPick for analog channels which improves the efficiency of target retrieval. 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI. 2-channel face recognition for analog channels which supports face comparison. 4-channel SMD Plus for analog channels or 8-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles. 4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos. Supports HDCVI, AHD, TVI, CVBS and IP video input. Supports up to 8-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 64 Mbps. Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes. Smart H.265+ and H.265 dual-stream video compression.

16-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder. 8-channel AcuPick for analogue channels which improves the efficiency of target retrieval. 8-channel perimeter protection for analogue channels which supports tripwire and intrusion detection powered by AI. 4-channel face recognition for analogue channels which supports face comparison. 16-channel SMD Plus for analogue channels or 32-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles. 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos. Supports HDCVI, AHD, TVI, CVBS and IP video input. Supports up to 32-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 128 Mbps. Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes. Smart H.265+ and H.265 dual-stream video compression.
