AV Costar Network cameras

The AV2145DN-3310-D-LG full HD 1080p network camera is part of Arecont Vision’s full line of H.264 MegaBall cameras. This fully-compliant implementation of H.264 (MPEG-4, Part 10) provides full 1920 x 1080 megapixel resolution at full video frame rates of 31 frames per second (fps). With the features of PSIA and ONVIF conformance, privacy masking, extended motion detection and flexible cropping, the camera is a high sensitivity, PoE (IEEE 802.3af) compliant day/night camera.

The AV2145DN-3310-DA-LG full HD 1080p network camera is part of Arecont Vision’s full line of H.264 MegaBall cameras. This fully-compliant implementation of H.264 (MPEG-4, Part 10) provides full 1920 x 1080 megapixel resolution at full video frame rates of 31 frames per second (fps).

The AV8185CO-HB is a dual encoder (H.264 & MJPEG), 8 megapixel resolution, IP addressable 180 degree panoramic IP camera. The camera provides an all-in-one solution with integrated four high sensitivity 2 megapixel sensors, 8mm lens, vandal resistant dome enclosure with rated IP66 for water and dust protection, and optional heater/blower.

The AV20185CO-HB is a dual encoder (H.264 & MJPEG), 20 megapixel resolution, IP addressable 180 degree panoramic IP camera with heater/blower.

Arecont Vision AV20365CO-HB is a dual encoder (H.264 & MJPEG), 20 megapixel resolution, IP addressable 360 degree panoramic IP camera. The camera has the ability to output multiple image formats allowing the simultaneous viewing of the full resolution field of view and regions of interest for high definition forensic zooming.

The AV2145DN-04-D-LG full HD 1080p network camera is part of Arecont Vision’s full line of H.264 MegaBall cameras. This fully-compliant implementation of H.264 (MPEG-4, Part 10) provides full 1920 x 1080 megapixel resolution at full video frame rates of 31 frames per second (fps).

The AV2146DN-04-D-LG full HD 1080p WDR network camera is part of Arecont Vision’s full line of H.264 MegaBall cameras. This fully-compliant implementation of H.264 (MPEG-4, Part 10) provides full 1920 x 1080 megapixel resolution at full video frame rates of 30 frames per second (fps).

The AV2145DN-04-DA-LG full HD 1080p network camera is part of Arecont Vision’s full line of H.264 MegaBall cameras. This fully-compliant implementation of H.264 (MPEG-4, Part 10) provides full 1920 x 1080 megapixel resolution at full video frame rates of 31 frames per second (fps).

3 megapixel CMOS image sensor.  Dynamic range: 60 dB.  Data transmission rate up to 55 Mbps.  50/60 Hz selectable flicker control.  Electrical POE (IEEE 802.3af standard) or DC input.  Forensic zooming; onboard motion detection.  Suitable for use in combination with direct controlled AI-DC lenses.

The AV40185DN-HB is a dual encoder (H.264 & MJPEG), 40 megapixel resolution, IP addressable 180 degree panoramic day/night IP camera  with heater/blower. The camera has the ability to output multiple image formats allowing the simultaneous viewing of the full resolution field of view and regions of interest for high definition forensic zooming.

The AV8365CO-HB is a dual encoder (H.264 & MJPEG), 8 Megapixel resolution, IP addressable 360 degree panoramic IP camera with heater/blower. The camera has the ability to output multiple image formats allowing the simultaneous viewing of the full resolution field of view and regions of interest for high definition forensic zooming.

The new Arecont Vision® MegaBall 2 with an ImmerVision Panomorph lens can capture 180° and 360° fields of view with dewarping to provide up to four-times more angular resolution in peripheral areas of a scene than conventional fisheye lenses. MegaBall 2 Panomorph is a 5-megapixel camera in a tamper resistant housing. Features include Day/Night operation, H.264 (MPEG-4 Part 10)/MJPEG dual encoders, privacy masking, extended motion detection with 1,024 distinct motion detection zones, a binning function for increased light sensitivity, flexible cropping to adjust image sizes and the ability to choose PoE (Power over Ethernet) or external power.

The AV8185DN-HB is a dual encoder (H.264 & MJPEG), 8 megapixel resolution, IP addressable 180 degree panoramic IP camera. The camera provides an all-in-one solution with integrated four high sensitivity 2 megapixel sensors, 8mm lens, vandal resistant dome enclosure with rated IP66 for water and dust protection, and optional heater/blower.

Arecont Vision AV20365DN-HB is a dual encoder (H.264 & MJPEG), 20 megapixel resolution, IP addressable 360 degree panoramic IP camera. The camera has the ability to output multiple image formats allowing the simultaneous viewing of the full resolution field of view and regions of interest for high definition forensic zooming.

The AV2146DN-3310-D-LG full HD 1080p WDR network camera is part of Arecont Vision’s full line of H.264 MegaBall cameras. This fully-compliant implementation of H.264 (MPEG-4, Part 10) provides full 1920 x 1080 megapixel resolution at full video frame rates of 30 frames per second (fps).

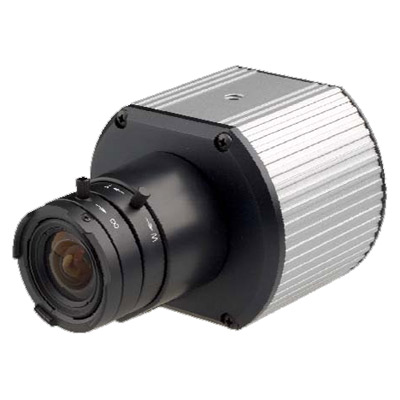

2 megapixel 1/2" color CMOS image sensor.  Dynamic range: 60 dB.  Data transmission rate up to 55 Mbps.  50/60 Hz selectable flicker control.  Electrical POE (IEEE 802.3af standard) or DC input.  Forensic zooming; onboard motion detection.  Suitable for use in combination with direct controlled AI-DC lenses.

The AV8365DN-HB is a dual encoder (H.264 & MJPEG), 8 Megapixel resolution, IP addressable 360 degree panoramic IP camera with heater/blower. The camera has the ability to output multiple image formats allowing the simultaneous viewing of the full resolution field of view and regions of interest for high definition forensic zooming.

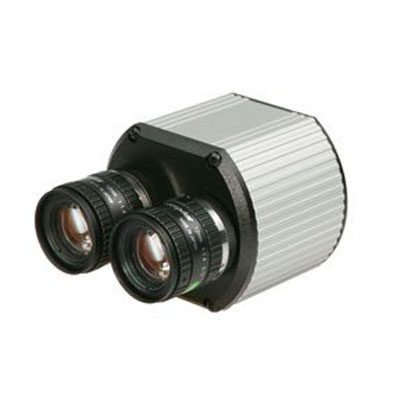

Recognising the license plate numbers of cars travelling at high speeds through a dimly lit tunnel may seem like a highly challenging security surveillance application. Fortunately, MegaVideo®Day/Night dual-sensor cameras from Arecont Vision can provide detailed, sharp images even in low light environments. That is why the local law enforcement and traffic authority of a recently constructed motor vehicle tunnel in Korea have turned to the AV3130 MegaVideo solution from Arecont Vision. The system was designed by local distributor, ViewRun, a Korean company experienced in machine vision and surveillance, and was installed by their integrator, Korea Image Systems Co. Ltd. The high resolution megapixel surveillance cameras from Arecont Vision were installed to capture the license numbers of cars that break the tunnel's traffic lights. The Korean tunnel application uses Arecont Vision's dual-sensor AV3130 3/1.3 megapixel (3 MP in colour mode, 1.3 MP in black and white mode) full motion progressive scan IP cameras providing up to 15 frames per second in colour, or day mode and 30 frames per second in black-and-white or night mode. Each camera contains a massively-parallel MegaVideo image processor chip that is capable of sustaining more than 6 billion operations per second, providing outstanding resolution and performance. View Run selected Arecont Vision cameras because of their low-light performance and the full motion progressive scan capabilities, facilitating a seamless installation and implementation process. The tunnel system also uses Arecont Vision's AV100 network video recorder software and the LuxRiot NVR video management software provided by A&H Software House, Inc., an Arecont Vision technology partner. The system sends video images along a100 base T Internet connection. "License plate recognition is one of the more challenging applications for video surveillance," said Becky Zhou, Arecont Vision Director of Sales, Asia Pacific. "The benefits of the improved image quality, low light sensitivity, and high frame rates made possible with Arecont Vision megapixel cameras, combined with our low price points, make the technology more readily available to a large range of new customers."

The AV2145DN-3310-DA full HD 1080p network camera is part of Arecont Vision’s full line of H.264 MegaBall cameras. This fully-compliant implementation of H.264 (MPEG-4, Part 10) provides full 1920 x 1080 megapixel resolution at full video frame rates of 31 frames per second (fps).

The AV2145DN-04-DA full HD 1080p network camera is part of Arecont Vision’s full line of H.264 MegaBall cameras. This fully-compliant implementation of H.264 (MPEG-4, Part 10) provides full 1920 x 1080 megapixel resolution at full video frame rates of 31 frames per second (fps). Built with Arecont Vision’s massively-parallel MegaVideo® processing technology, this camera offers more than 6-times the resolution of standard resolution IP cameras with the ability to output full real-time frame rates and deliver high-quality megapixel imaging.

True day/night functionality Remote focus/zoom p-iris lens Dual encoder H.264/MJPEG Privacy mask Motion detection Flexible cropping ONVIF Profile S and PSIA conformant

True day/night functionality Remote focus/zoom p-iris lens Dual encoder H.264/MJPEG Privacy mask Motion detection Flexible cropping ONVIF Profile S and PSIA conformant

True day/night functionality Remote focus/zoom p-iris lens Dual encoder H.264/MJPEG Privacy mask Motion detection Flexible cropping ONVIF Profile S and PSIA conformant

The Contera® Indoor Dome megapixel camera features 1080p and 5-megapixel (MP) resolution for optimum performance. The Contera Indoor Dome combines a day/night mechanical IR cut filter with an integrated motorised remote focus and zoom varifocal lens for excellent, optimal image quality.  Regardless of the time of day, the Contera Indoor Dome is prepared for any lighting condition. For applications with poor lighting conditions, Enhanced WDR™ (wide dynamic range) at 120dB provides the best visual balance to shaded and bright light conditions.  For clear colour images in low-light, NightView™ offers strong low-light sensitivity for capturing details in extremely poor-lit scenes. Built-in Smart IR LED illumination automatically adjusts output in response to the distance of an object in view to prevent over-exposure when the object is very close to the camera.  The SD card slot supports up to 256GB of storage capacity for convenient onboard storage. The camera’s power can be supplied via a Power-over-Ethernet (PoE - IEEE 802.3af) compliant network cable connection.  The Contera Indoor Dome is ONVIF (Open Network Video Interface Forum) Profile S and G compliant, providing interoperability between network video products regardless of manufacturer.

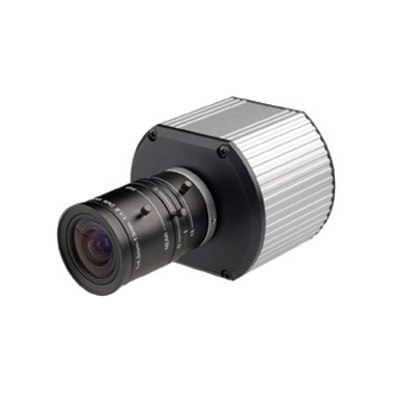

Arecont Vision, the industry leader in IP-based megapixel camera technology, recently introduced the world's first H.264 Dual Mode 10MP/1080p camera at the ISC West conference. The innovative Dual Mode camera combines the resolution of a 10 megapixel camera and a full HD 1080p at 30fps camera into one camera system. The AV10005 Series, available in colour, day/night and colour auto-iris versions, are the latest additions to the industry's broadest line of megapixel cameras from Arecont Vision. "As the leader in IP megapixel video, Arecont Vision continues to push the envelope and provide the market with cutting edge innovation, the best price performance ratio as well as convenience and ease of use for our customers. Our new AV10005 Series merges the functionality of two cameras into one providing the unique ability to operate in either 10 megapixel resolution or in Full HD1080p at 30fps," said Dr. Michael Kaplinsky, CEO, Arecont Vision. "This camera offers our customers the ability to use a single camera model to solve a multitude of challenging requirements that exist in complex installations." This H.264 Dual Mode Camera offers 33 times the compared to standard definition VGA cameras. It also provides the versatility to crop the field-of-view to any resolution (5 MP, 3 MP, etc.), select 4 x 3 or 16 x 9 (1080p HDTV) aspect ratio, and apply H.264 or MJPEG compression to best suit the application. The cameras also offer a binned mode that combines and averages pixels for better low-light performance, greater sensitivity and improved signal-to-noise ratio (SNR). In 10MP mode, the AV10005 Camera provides 3648 x 2752 pixel resolution at 6 frames-per-second (fps). In 1080 mode, it provides Full HD1920 x 1080 at 30 frames per second. Users can digitally pan, tilt and zoom live with multiple zoom windows while recording the full field-of-view in 10 megapixel or full HD 1080p. Post event forensic zooming is also possible from archives to extract recorded details. Other Features include on-camera real-time motion detection with 64 detection zones, a programmable shutter speed to control motion blur and MoonLight™ mode for extended exposure and noise cancellation. The AV10005 Series is the latest addition to Arecont Vision's full line of cameras ranging in image resolution from 1.3 to 10 megapixels, including camera models providing advanced capabilities such as dual sensor day/night and panoramic viewing. Using H.264 compression, Arecont Vision cameras provide outstanding compression efficiency to solve system issues related to bandwidth and storage. The Arecont Vision line also includes the MegaDomeTM Series of all-in-one dome cameras and a new compact JPEG series of cameras to address cost-sensitive applications.

Arecont Vision, the industry leader in IP-based megapixel camera technology, has introduced the new model AV2805, a full HD Mode 1080p camera providing full high-definition (HD) video with 1920x1080 pixels (2.07 megapixels) at 30 fps. The new model rounds out the industry's largest megapixel camera line and complements Arecont Vision's new AV10005 series of 10 megapixel/1080p dual mode cameras by offering a single standardised 1080p mode, along with otherwise similar features, at a more competitive price point."Our newest camera provides an advanced yet economical choice for applications requiring a Full HD 1080p solution," says Dr. Michael Kaplinsky, CEO, Arecont Vision. "The new camera we are unveiling at IFSEC delivers the best price/performance ratio in the industry and unparalleled image quality typical of Arecont Vision's camera line."Available in colour, day/night and colour auto-iris versions, the AV2805 offers selectable H.264 or MJPEG compression to best suit a wide range of applications. Users can digitally pan, tilt and zoom live with multiple zoom windows while recording the full field-of-view in full HD 1080p. Post-event forensic zooming is also possible from archives to extract recorded details.Arecont Vision's line of cameras range in image resolution from 1.3 to 10 megapixels, including camera models that provide advanced capabilities such as dual sensor day/night capabilities and panoramic viewing. Using H.264 compression, Arecont Vision cameras provide outstanding compression efficiency to solve system issues related to bandwidth and storage.

Arecont Vision, the industry leader in IP-based megapixel camera technology, today introduces the world's first H.264 Dual Mode 10MP/1080p camera here at the ISC West conference. The innovative Dual Mode camera combines the resolution of a 10 megapixel camera and a full HD 1080p at 30fps camera into one camera system. The AV10005 Series, available in colour, day/night and colour auto-iris versions, are the latest additions to the industry's broadest line of megapixel cameras from Arecont Vision. "As the leader in IP megapixel video, Arecont Vision continues to push the envelope and provide the market with cutting edge innovation, the best price performance ratio as well as convenience and ease of use for our customers. Our new AV10005 Series merges the functionality of two cameras into one providing the unique ability to operate in either 10 megapixel resolution or in Full HD1080p at 30fps," said Dr. Michael Kaplinsky, CEO, Arecont Vision. "This camera offers our customers the ability to use a single camera model to solve a multitude of challenging requirements that exist in complex installations." This H.264 Dual Mode Camera offers 33 times the compared to standard definition VGA cameras. It also provides the versatility to crop the field-of-view to any resolution (5 MP, 3 MP, etc.), select 4 x 3 or 16 x 9 (1080p HDTV) aspect ratio, and apply H.264 or MJPEG compression to best suit the application. The cameras also offer a binned mode that combines and averages pixels for better low-light performance, greater sensitivity and improved signal-to-noise ratio (SNR). In 10MP mode, the AV10005 Camera provides 3648 x 2752 pixel resolution at 6 frames-per-second (fps). In 1080 mode, it provides Full HD1920 x 1080 at 30 frames per second. Users can digitally pan, tilt and zoom live with multiple zoom windows while recording the full field-of-view in 10 megapixel or full HD 1080p. Post event forensic zooming is also possible from archives to extract recorded details. Other Features include on-camera real-time motion detection with 64 detection zones, a programmable shutter speed to control motion blur and MoonLight™ mode for extended exposure and noise cancellation. The AV10005 Series is the latest addition to Arecont Vision's full line of cameras ranging in image resolution from 1.3 to 10 megapixels, including camera models providing advanced capabilities such as dual sensor day/night and panoramic viewing. Using H.264 compression, Arecont Vision cameras provide outstanding compression efficiency to solve system issues related to bandwidth and storage. The Arecont Vision line also includes the MegaDomeTM Series of all-in-one dome cameras and a new compact JPEG series of cameras to address cost-sensitive applications.
